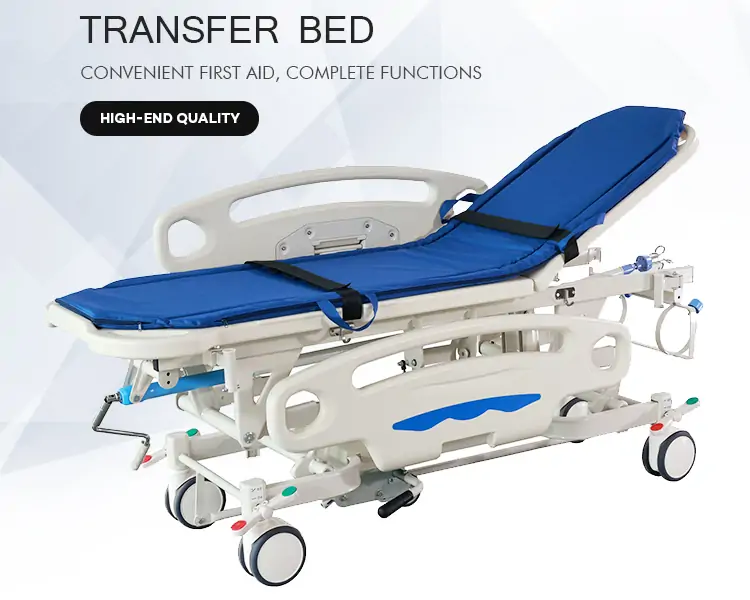

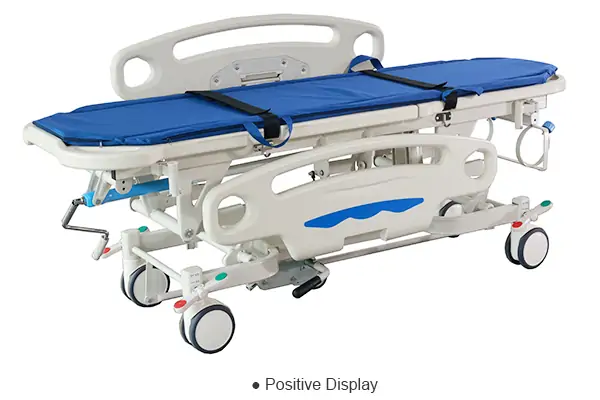

DW-ET07
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
Specifications: length 1930mm, width 670mm
Height lifting: 510—850mm
Back lift: 0—70°
Safe working load: 170KG
Bed board: PE resin
Frame: Steel products
Basic Skills:
1. Specifications: Full length 1930mm, full width 670mm, height lift 510-850mm, back lift 0-70°.
2. Safe working load: 170KG

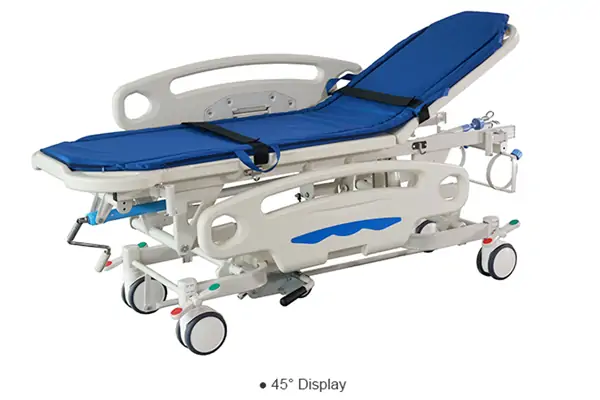

3. Back lifting system: The back lifting is controlled by a silent gas spring.
4. Height adjustment: metal material rocker system, overload protection function, not easy to break.
5. Bed board: PE resin molding products.
6. Frame: It is made of welded steel products.
※7. Guardrail board: PE resin molded guardrail board on both sides, guardrail height ≥ 360mm, effective protection height ≥ 260mm, patients are safer, guardrail is installed on two iron plates welded vertically with the bed through step screws to ensure The fluency and intensity of the activity is better.
※8. The guardrail adopts a new safety guardrail design. The buckle of the guardrail is fixed by a 9mm thick lock. When the guardrail is under stress, it cannot be opened. The guardrail can be opened from the outside to the inside, thus effectively preventing the patient from getting inside. Misoperation, resulting in bed falling accidents, making it safer;
※9. There are three round holes on the guardrail panel, which is convenient for medical staff to implement from all angles and observe the patient. The guardrail thickness ≥43mm has better grip and higher strength.
※10. Casters: Double-sided anti-winding casters with central lock, prevent hair and other sundries from entering the casters and causing implementation failures. Internal steel brackets, double-bearing cylindrical structure, large load capacity, strong anti-collision and anti-side force effects, There are four casters with a diameter of 150mm. The four corners of the cart are equipped with a caster control system. One foot brakes and the four wheels are fixed at the same time.
11. The central control brake linkage rod is formed by an integrated round tube to ensure higher strength.
※12. Independent central fifth wheel system: control pedals are installed on both sides of the cart, and the central fifth wheel can move freely when retracted;
13. Tray: There is an injection molded two-stage tray under the bed. The tray is divided into two parts with different sizes and depths. It is equipped with 6 leaking holes and is easy to use. The tray can bear 10Kg.
※14. Infusion stand storage rack, the lower part of the back plate is equipped with infusion stand storage rack, which can be fixed and stored when not in use, and there is a plastic sleeve in the infusion stand storage rack to prevent the infusion stand from colliding and shaking.
※15. Oxygen bottle shelf, can place a maximum of 7 liters of oxygen cylinders horizontally on the underside of the bed, and has two knobs for fixing.
16. Transfer mattress: The mattress has a three-stage structure, the surface of the fabric is waterproof, easy to clean, and the four corners are equipped with zippers;
※17. There are four stainless steel metal hooks on the side of the bed, which are riveted and fixed with stainless steel rivets, which have better strength and more beautiful appearance.
※18. The frame of the bed body is welded vertically by a U-shaped square tube of 30*60*1.5mm, with better strength and stable implementation.
19. Infusion stand socket: There are infusion stand sockets around the bed, which can be rotated to place the infusion stand when in use, and can be rotated and stored under the bed when not in use. There is a plastic sleeve in the infusion stand socket to prevent collisions. Beautiful and easy to use.
Configuration List:
1. One bed body;
2. Two integrated guardrails;
3. 4 double-sided casters;
4. 4 sets of central control locking pedals;
5. One set for the fifth round of the center;
6. 1 set of integral lifting rocker;
7. 1 set of back lifting gas spring;
8. One tray at the bottom;
9. One infusion stand;
10. 4 rotatable infusion stand jacks;
11. One oxygen cylinder hanger;
12. One transfer mattress;
