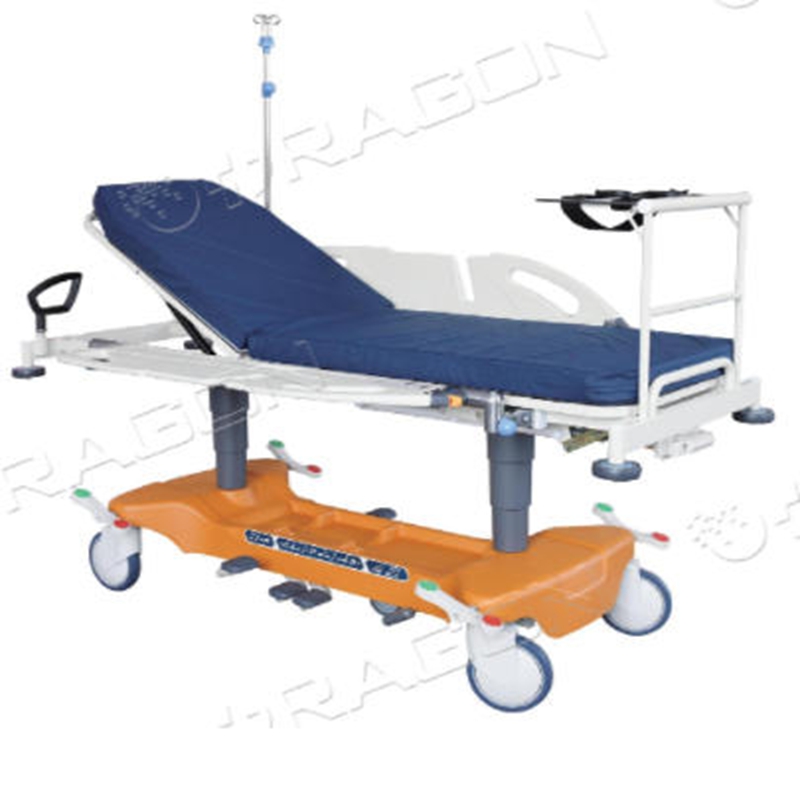

MT-TT02
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
| Specifications:Overall lenath 2130mm*760mm*560/890, bed board lenath 1880mm,bed board width 620mml |
| Functions: Backrest can be folded from 0 -90°,knee can be folded from 0-40°,front and rear inclination can be adjusted from-18°to 18° |
| Features |
| Safe working load: 220KG. |
| Backrest lifting system: Controlled by 2 high-quality silent air springs, with stronger and safer load-bearing capacity. |
| Height adjustment system: Adopted with high-quality double hydraulic cylinder design, with enhanced load-bearing capacity and better stability,and more convenient operation. |
| Knee lifting uses ABS hand crank operation, The hand crank has over-rotation protection function. |
| Bed board: Made of 4mm thick ABS material, can be penetrated by X-rays, with higher strength, no deformation, ensuring the safety of rescuing patients in emergency situations. |
| Guardrail: Aluminum alloy crossbar, 304 stainless steel six-position guardrail; |
| Guardrail functions: Standing,horizontal placement,lowerng. |
| The guardrail board is equipped with angle display; there is a groove between the two side guardrails, preventing the tube from slipping and facilitating infusion drainage. |
| Casters: Adopted with 200mm diameter central control silent casters. There are caster control system at the four corners of the bed,one foot braking, all four wheels fixed simultaneously,convenient for medical staff operation. |
| Center fifth wheel system: Both sides of the bed have control levers, the diameter of the center fifth wheel is ≥ 100mm, it can freely move when folded; when in use,it is in a "straight" state, efectively controlling the forward direction, making the transportation process safer. |
| Tray: There is an integrated ABS material tray under the bed body,which can hold a 4-liter oxygen cylinder, convenient to use,the tray can bear a load of 10KG. |
| Infusion stand holes: The entire bed is equipped with 8 infusion stand holes on the front and back,better meeting clinical needs. |
| Mattress:The mattress thickness is ≥70mm,making it more comfortable for patients to lie fat, the wateroroof breathable fabric is easy to clean, and it has a zipper, the external fabric can be washed. |
| Record table: At the end of the bed, there is a record table, the tabletop can be placed horizontally on both the front and back sides, it can be used as a record table or monitoring table. When not in use, it can be stored and does not occupy space. (Optional) |
| Angle gauge: There is 1 angle gauge on each side of the bed frame, showing the forward and backward inclination angle ofthe bed,convenient for special clinical requirements.(Optional) |
