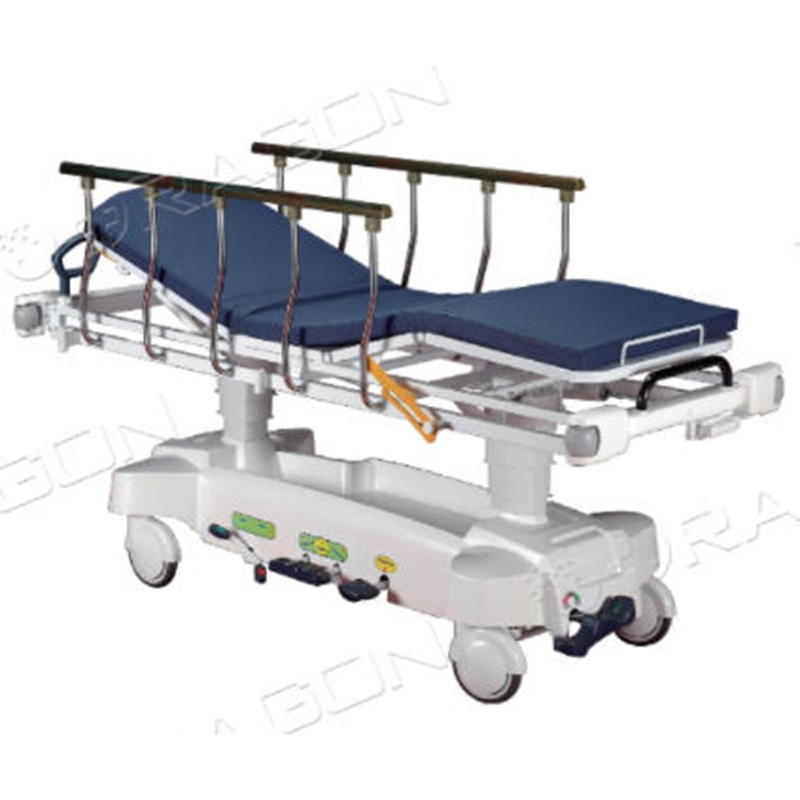

MT-TT01
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
| Specifications:2140*810 (net width of the bed surface: 620)* height: 610-920mm |
| Functions: |
| Backrest angle: 0-75° ,leg elevation:0-45°,overall forward tilt: 0-15° ,overall backward tilt: 0 -15°. |
| The bed can bear a load of 250kg; the weight of the bed body is ≥ 100KG. |
| One-foot control brake system. |
| Features |
| The bed board is made of Hpl,the entire bed board can be X-ray penetrated, and there is a movable tray under the bed board for X-ray films, equipped with a "cardiopulmonary resuscitation position" quick release handle. |
| Screw, equipped with two-way positioning protection function; adopts "two-way positioning without limit protection" screw system,the wall thickness of the screw tube is ≥ 1.2mm. The screw rod adopts two-way limit function, smooth rotation, no noise.And has an ABS dustproof cover. |
| There is a drip station socket on both sides of the bed body in the middle,, the infusion stand is fixed on the bed body, and it can be tilted to the bedside when not in use. |
| Stainless steel double-section drip stand, diameter 19mm. |
| The matress at the bed tail has anti-slip function, preventing the mattress from sliding forward and backward when the bed board is raised and lowered. |
| Stainless steel guardrail: the entire guardrail uses 5 movable joints, wear-resistant self-ubricating,no abnormal noise. |
| Hydraulic lifting system: uses imported hydraulic pump, no obvious sinking under long-term load. The hydraulic pedal operates flexibly without noise. |
| Overal blow-molded PP engineering plastic base cover, and there is an oxygen cylinder storage base. |
| Casters: diameter 8 inches central control casters, silent, wear-resistant, waterproof, and designed to prevent the rope from getting tangled with debris. |
| Equipped with a 6CM thick full sponge mattress, covered with high-grade PU waterproof fabric, soft and easy to clean. |
| Both the front and rear of the bed are equipped with handles, convenient for transporting patients; the four corners of the bed body have anti-collision wheels, protecting the vehicle from damage. |
| Guide wheel design, fexible transfer, reducing the workload of medical staff. |
