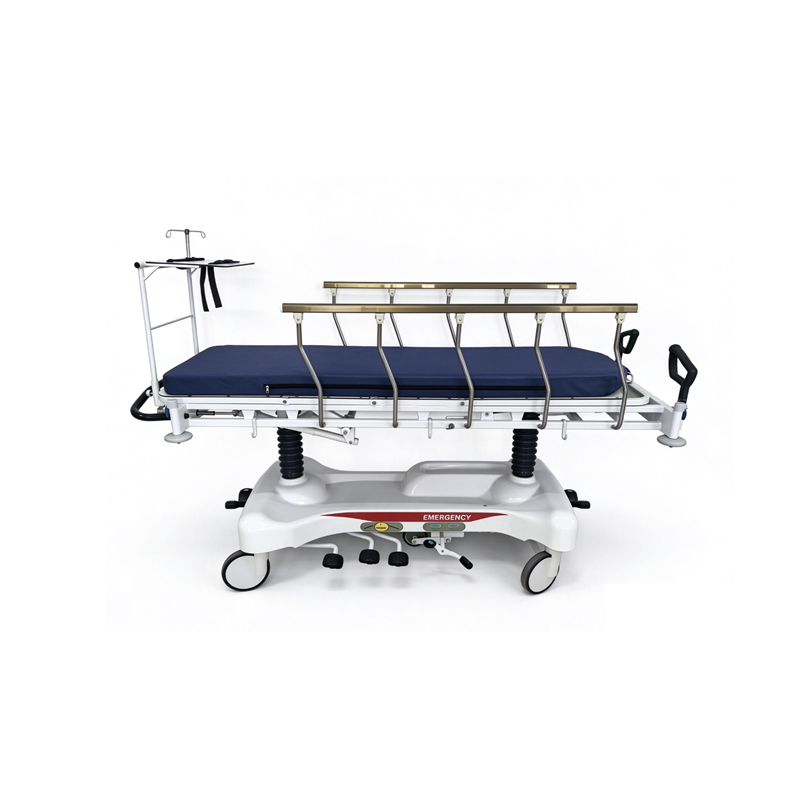

Dimensions: 2140x800x620/930 mm
Bed board length: 1910 mm,
bed board width: 620 mm.
Height adjustment range: 620 ~ 930 mm.
Backrest lifting angle: 0 ~ 75°.
Knee section lifting angle: 0 ~ 40°.
Trendelenburg & reverse Trendelenburg tilt angle: 0°~ 18°.
Safe working load: 300 KG
Back lifting system: Controlled by silent gas springs.
Height lifting system: Hydraulic cylinder control for stable performance.
Bed board: Made of compact laminate material, high strength and non-deformable. X-ray permeable bed surface with film cassette holder.
Frame: Constructed of high-quality steel.
Foldable side rails: High-quality stainless steel foldable rails. Zinc die-cast components at latch points for enhanced strength and secure locking.
Casters: 4 pcs of 200 mm diameter casters with central locking system. Caster control system at each corner of trolley; one-step brake locks all four wheels simultaneously.
Integrated round tube forming for central brake linkage to achieve superior strength.
Independent central fifth wheel system: Control pedals fitted on both sides of trolley. Trolley moves freely when fifth wheel retracted; when deployed, it maintains straight-line travel. Pedal ground clearance: 105 mm for good passability. It counteracts inertia during transportation and effectively controls moving direction for safer transfer.
Integrated tray underneath bed for oxygen cylinder storage, convenient for use. Tray load capacity: 10 Kg.
IV pole storage bracket to secure and store IV pole.
Mattress: Waterproof fabric surface, easy to clean. Equipped with zipper; outer cover is washable.
