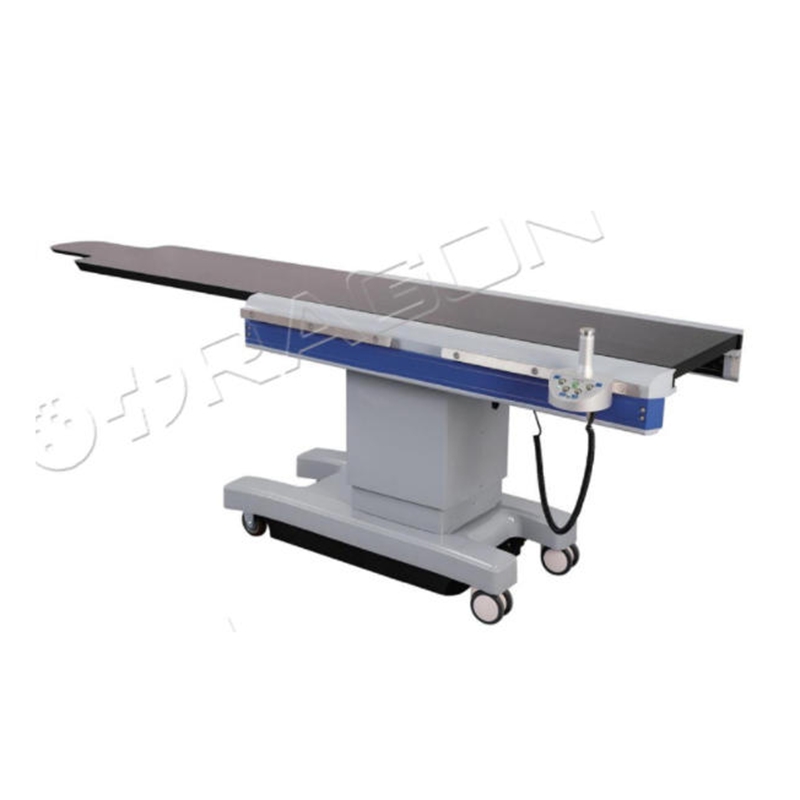

OR-OT05
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
| Bed panel |
| ·Overall shape |
| ·Material carbon fiber |
| ·Total length 2500±10mm |
| ·See-through surface length 1750±10mm |
| ·Non-metal inspection length 1200±5mm |
| ·Total width (including side rails)690±5mm |
| ·See-through surface width 465mm |
| ·Thickness 35mm |
| ·X-ray absorption coefficient (aluminum equivalent)≤ 0.73mmAL |
| ·Maximum load capacity 240kg |
| Lateral movement manual |
| ·Stroke 240±20mm |
| ·Locking device electromagnetic locking |
| Longitudinal move manual |
| ·Stroke 770±20mm |
| ·Locking device electromagnetic locking |
| Vertical mobile electric |
| ·Minimum height from the ground 770±20mm |
| ·Maximum height from the ground 1050±20mm |
| ·Average speed 8mm/s |
| Through the CE EU standard test,to meet the EU quality standards,through the EU CE certification, export -oriented products, product grade to the quality of imported products. |
