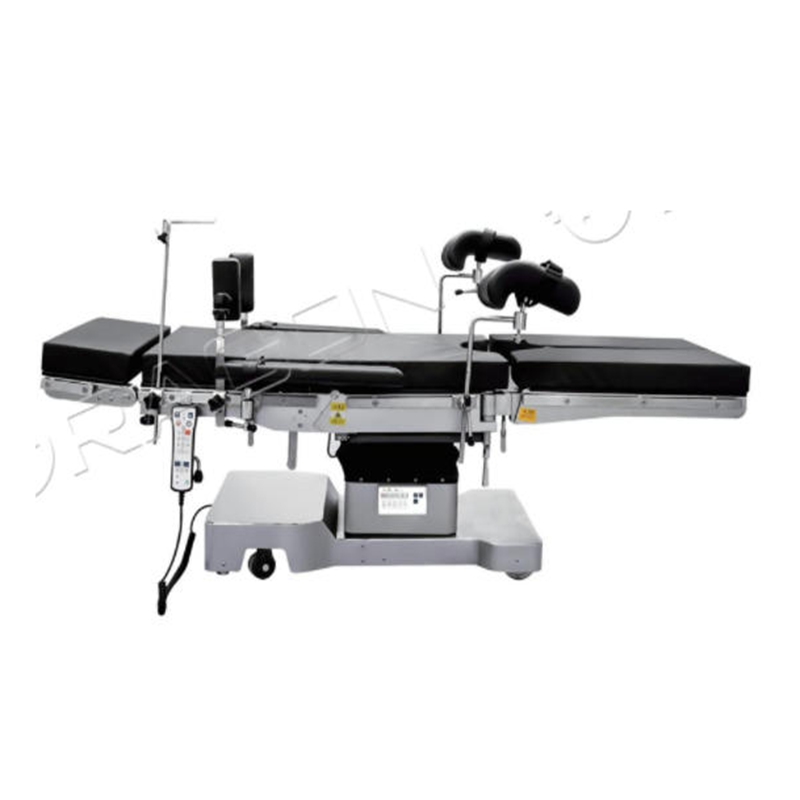

OR-OT02
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
| Table panel size(L*W):(2050×550)±10mm |
| Tabletop lowest height:(550±20)mm |
| Elevation range:(500±20)mm |
| Longitudinal slide:(350±20)mm |
| Trendelenburg/Reverse trendelenburg:30°±2/30°±2° |
| Lefttilt:20°±2° |
| Right tilt:20°±2° |
| BackpanelUp:88°±2°Down:45°±2° |
| Leg board Up:5°±2°Down:90°±2°(manual) |
| Head plateUp:59°±2°Down:90°±2°(manual) |
| The operating table adopts a dual-control method, including a wired hand controller and a column control panel with consistent functions. |
| This ensures that if one set of control systems fails, the other can still operate independently, maximizing the safety of the operation. |
| It is equipped with one-key reset,one-key flexion, and one-key reverse flexion functions. |
| An electric braking system is provided,facilitating the locking and movement of the operating table. |
| Table panel size(L*W):(2050×550)±10mm |
| Tabletop lowest height:(550±20)mm |
| Elevation range:(500±20)mm |
| Longitudinal slide:(350±20)mm |
| Trendelenburg/Reverse trendelenburg:30°±2/30°±2° |
| Lefttilt:20°±2° |
| Right tilt:20°±2° |
| BackpanelUp:88°±2°Down:45°±2° |
| Leg board Up:5°±2°Down:90°±2°(manual) |
| Head plateUp:59°±2°Down:90°±2°(manual) |
| The operating table adopts a dual-control method, including a wired hand controller and a column control panel with consistent functions. |
| This ensures that if one set of control systems fails, the other can still operate independently, maximizing the safety of the operation. |
| It is equipped with one-key reset,one-key flexion, and one-key reverse flexion functions. |
| An electric braking system is provided,facilitating the locking and movement of the operating table. |
