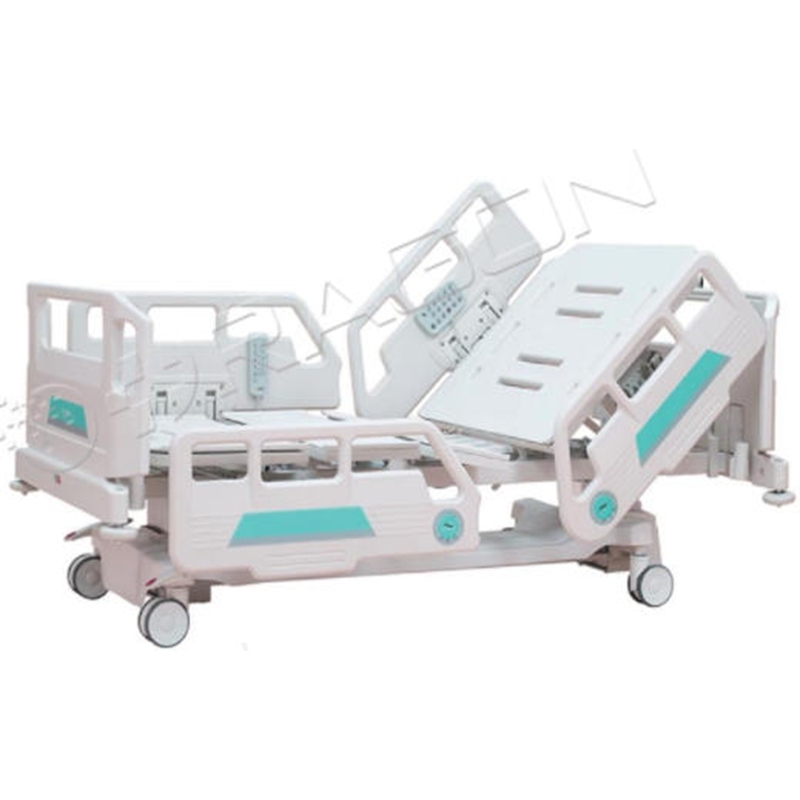

WF-EB05
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
| Overall Dimensions: Length 2165mm(2200mm including anti-collision wheels)×Width 1000mm(including anti-collision wheels)×510-910mm(Lifting stroke 510mm,±10mm) |
| Bed Panel Dimensions: Width 900mm, Length 1950mm |
| Functions: |
| Lifting Stroke of Bed Surface from Ground: 510-910mm(±10mm) |
| Backboard Folding Angle: 0-65°,Maximum Leg Flexion Angle: 0-35° |
| Forward & Backward Tilt Angle: 0-15° |
| Bed Load-Bearing Capacity:≥300KG |
| CPR Function: Equipped with electric CPR(Cardiopulmonary Resuscitation)function |
| Height of Guardrail from Bed Surface When Raised: 360mm±10mm |
| Four infusion stand sockets are installed at the four corners of the bed |
| PP (Polypropylene) anti-collision wheels (75mm in diameter, 46mm in thickness) are equipped at the four corners of the bed |
| Back Retraction Function: The backboard can be telescoped by 200mm |
| casters: Four 125mm central-controlled brake casters are adopted |
