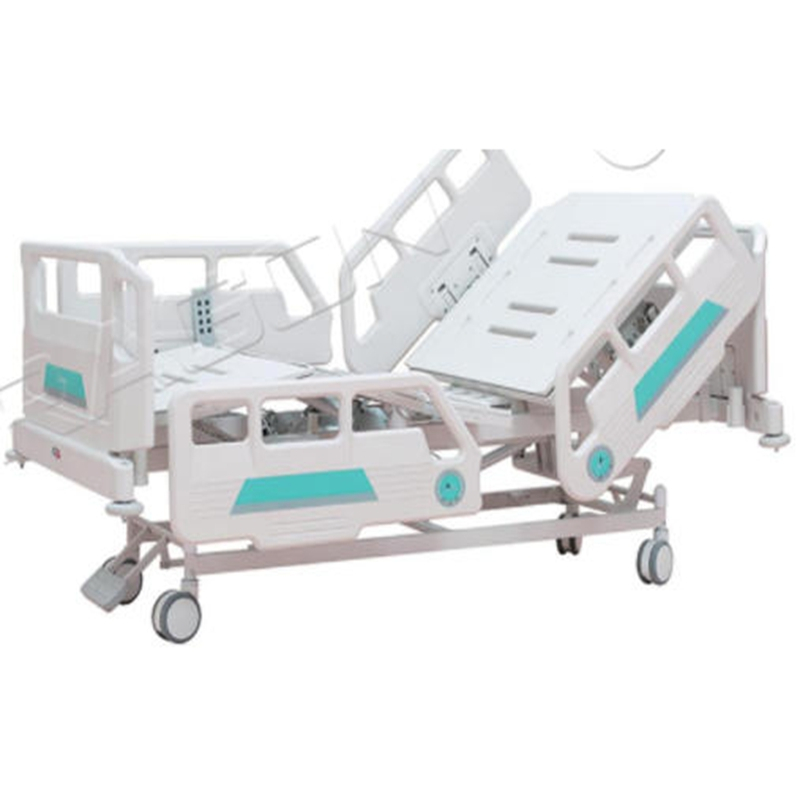

WF-EB04
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
| Overall Dimensions of Bed Frame: Length 2165mm(2200mm including anti-collision wheels)×Width 1000mm(1110mm including anti-collision wheels)×Height 510-750mm(Lifting stroke 240mm); |
| Bed Panel Dimensions: Length 1950mm, Width 900mm |
| Functions |
| Bed Surface Lifting Height: 510-750mm(±10mm) |
| Backboard Folding Angle: 0-65°,Maximum Leg Flexion Angle: 0-35° |
| CPR Function: Equipped with electric CPR(Cardiopulmonary Resuscitation) function |
| Overall Bed Safe Load-Bearing Capacity:≥300kg |
| Height of Guardrail from Bed Surface When Raised: 360mm±10mm |
| Four infusion stand sockets are installed at the four corners of the bed frame |
| Anti-collision wheels made of PP(Polypropylene)are equipped at the four corners of the bed frame,with a diameter of 75mim and a thickness of 46mm |
| Back Retraction Function: The backboard can extend by 200mm |
| Casters:Four 125mm central-controlled brake casters are adopted |
| Overall Dimensions of Bed Frame: Length 2165mm(2200mm including anti-collision wheels)×Width 1000mm(1110mm including anti-collision wheels)×Height 510-750mm(Lifting stroke 240mm); |
| Bed Panel Dimensions: Length 1950mm, Width 900mm |
| Functions |
| Bed Surface Lifting Height: 510-750mm(±10mm) |
| Backboard Folding Angle: 0-65°,Maximum Leg Flexion Angle: 0-35° |
| CPR Function: Equipped with electric CPR(Cardiopulmonary Resuscitation) function |
| Overall Bed Safe Load-Bearing Capacity:≥300kg |
| Height of Guardrail from Bed Surface When Raised: 360mm±10mm |
| Four infusion stand sockets are installed at the four corners of the bed frame |
| Anti-collision wheels made of PP(Polypropylene)are equipped at the four corners of the bed frame,with a diameter of 75mim and a thickness of 46mm |
| Back Retraction Function: The backboard can extend by 200mm |
| Casters:Four 125mm central-controlled brake casters are adopted |
