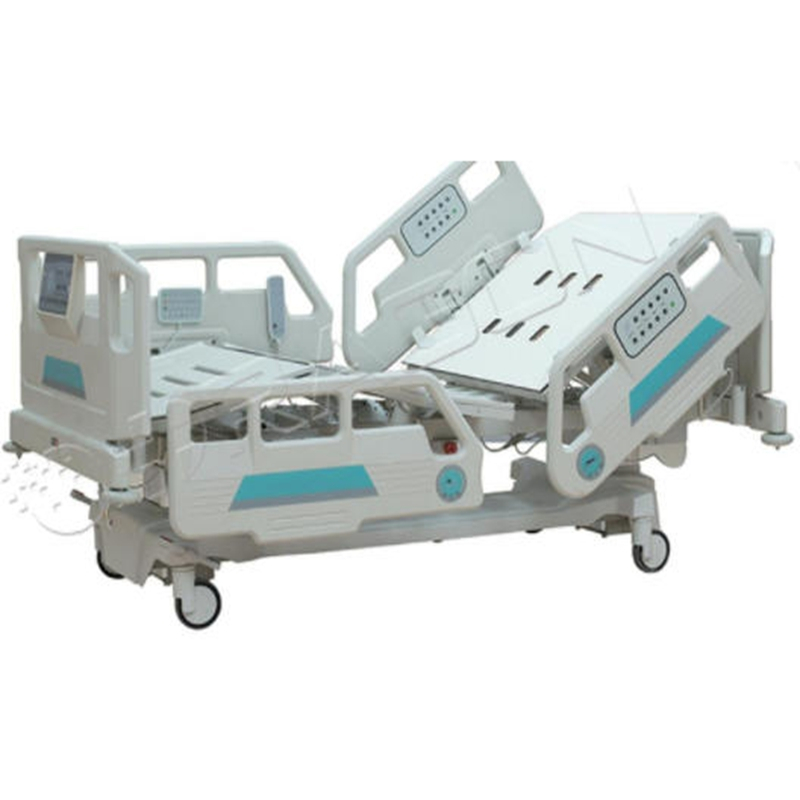

WF-EB03
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
| Dverall dimensions of the bed frame: 2165mm (2200mm including anti-collision wheels) x 1000mm in width (1110mm including anti-collision wheels)×450-800mm (with a lifting stroke of 350mm) |
| Bed panel width: 900mm; Bed panel length: 1950mm |
| Lifting stroke of the bed surface from the ground: 450-800mm(±10mm) |
| Backboard folding angle: 0-65°; |
| Leg bending angle:0-35° |
| Forward and backward tilting angle: 0-12° |
| Left and right tiiting angle of the bed frame: 20°±2° |
| Height of the guardrail from the bed surface when raised: 360mm±10mm |
| Load-bearing capacity of the bed frame:≥300KG |
| Weighing function: Weighing deviation ≤0.1kg |
| Bed extension function: The lower leg panel extends the bed surface, with an extension distance of 200mm±10mm |
| Back retraction function: The backboard can extend by 200mm |
| Four infusion stand sockets are installed at the four corners of the bed frame |
| PP anti-colision wheels are equipped at the four comers of the bed frame, with a diameter of 75mm and a thickness of 46mm |
