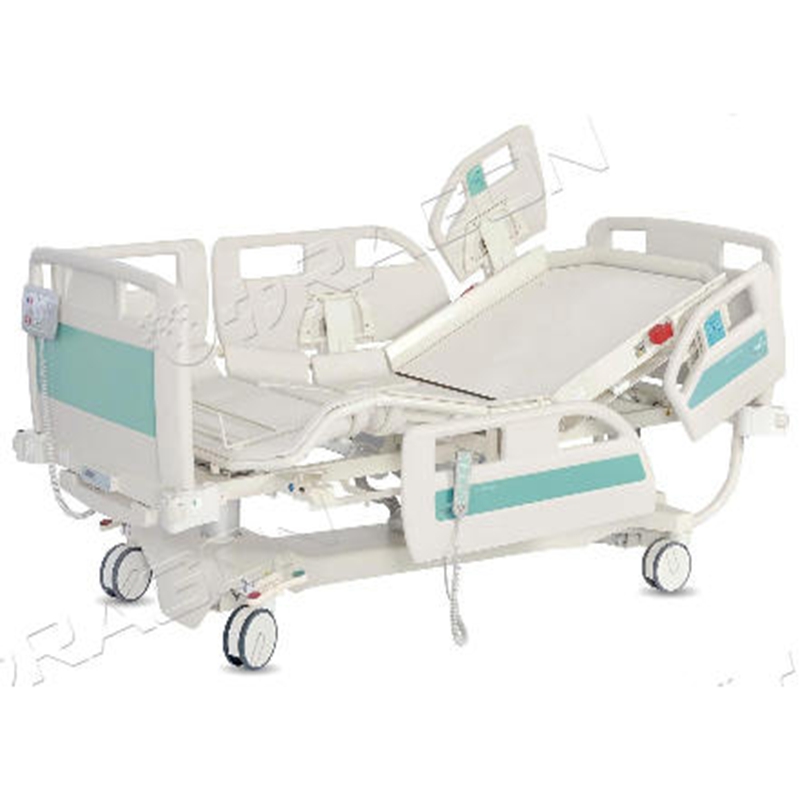

WF-EB01
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
| Overall Length:2200mm±20mm |
| Overall width: 1040mm±20mm |
| Height adjustment: 500-900mm±20mm |
| Bed platform:1900*880mm±20mm |
| Back-rest: 0-70°(±5°) |
| Knee-rest :0-35°(±5°) |
| Trendelenburg:0-14°(±2°) |
| Reverse trendelenburg:0-14°(±2°) |
| Safe working load: 250kgs |
| Auto- contour |
| Calf multi-position adjustment |
| Electric CPR |
| Manual CPR |
| Angle Indicator |
| Bed Extension: 100-200 mm |
| X-ray (backrest) |
| Weight scale system |
| Automatic compound fallback design |
| Emergency stop |
| EmergencyTrendelenburg position |
| Cardiac chair position |
| Zero position |
| Linear motor: 2 pcs (Dewert Brand) |
| Stand column motor: 2 pcs (Dewert Brand) |
| 6 inch twin wheels with central locking system castors: 4 pcs |
| Central brake pedals: 2 pcs |
| HDPE side rail: 4 pcs (2 pcs small side rail built-in button) |
| HDPE head/foot boards: 1 set |
| Bumper wheels (diameter 54mm): 4 pcs |
| Trapeze Socket: 4 pcs |
| IV pole prevision: 4 pcs |
| Drainage hook removeable: 4 pcs |
| HDPE removeable plateform: 1 set |
| HPL backrest platform: 1 set |
| Storage holder: 1 pc |
| Anti-slip device: 1 pc |
| Remote control handle: 1 pc |
| Nurse control panel holder: 1 pc |
| Mattress: 1 pc |
