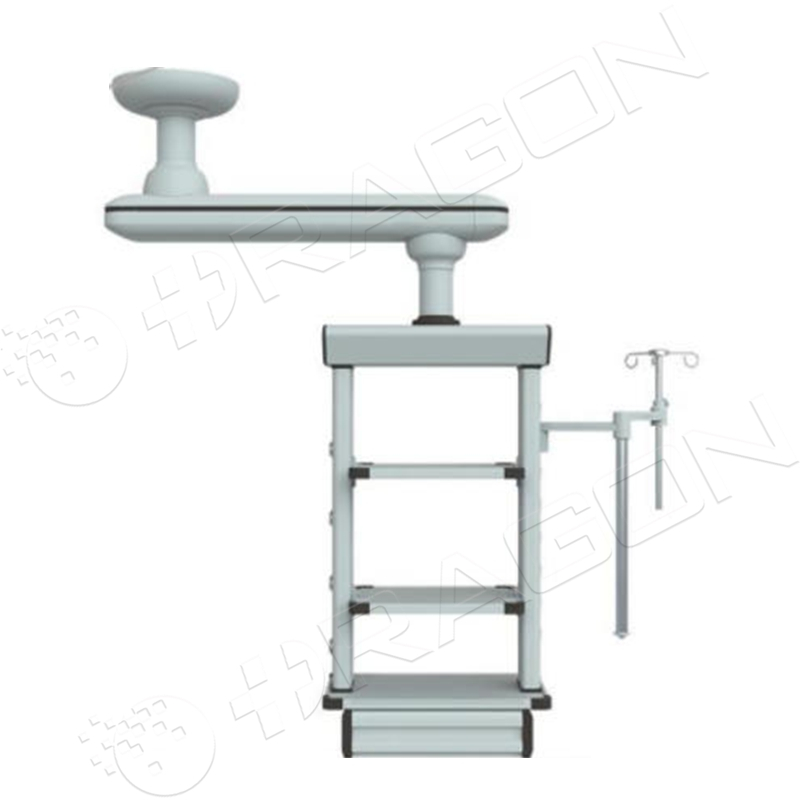

Ceiling Pendant OR-CP03

The Ceiling Pendant is integrated into the ceiling, primarily used to reduce floor clutter, optimize the sterile environment, and improve surgical processes and safety.
  • OR-CP03

  • DRAGON

Availability:
Quantity:

PDF Export

Operating Power Supply: AC 220V, 50Hz
Input Power:6KVA,Cantilever Length: 1000mm
Function Box Column Length: 1000mm
Cantilever Rotation Angie:340°
Function Box Rotation Angle:340°
Tower Crane Load Capacity:200kg
Instrument Platform Load Capacity:50kg
Function Box Column:1 unit,Rotating Cantilever: 1 unit
Electromagnetic Brake System: 1 set
Gas Terminals:Oxygen *2,Suction *2, Air *1,Carbon Dioxide*1
Instrument Platforms: 3 layers,Power Sockets:8units(220V/10A)
Equipotential Grounding Terminals: 4 units
Network Interface:1 unit (RJ45)
Drawer: 1 unit,Infusion Pump Rack: 1 set
Pneumatic Brake:1 set
