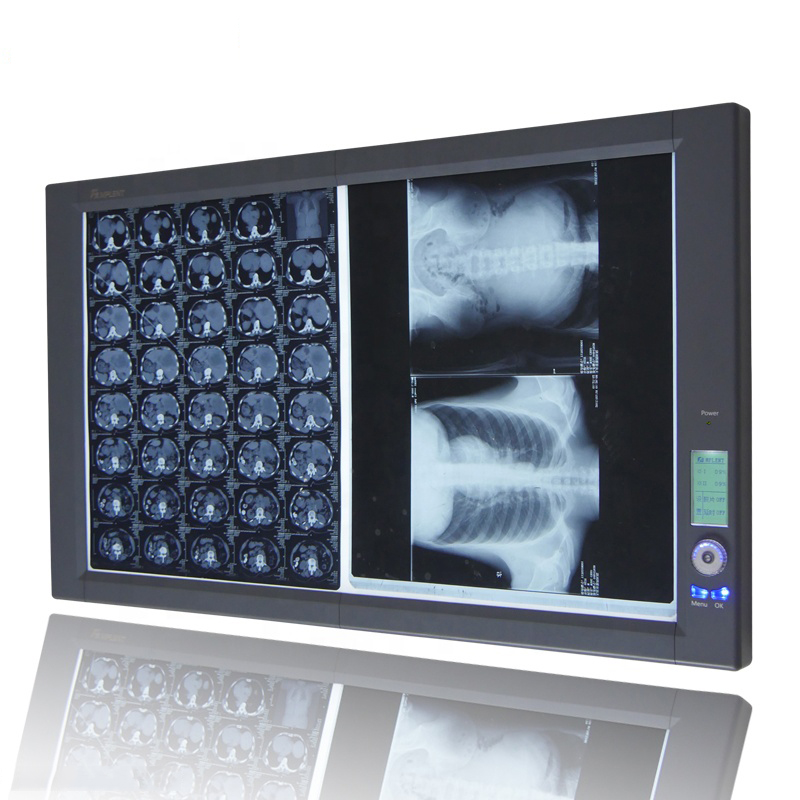

| Name | LED X-Ray Film View box | |
| Model | Double DW-2A | |
| Parameters | External Size(mm) | 840*502*38 |
| Visual Size(mm) | 720*422 | |
| Max.Power | 60W | |
| Light source mode | Back light mode | |

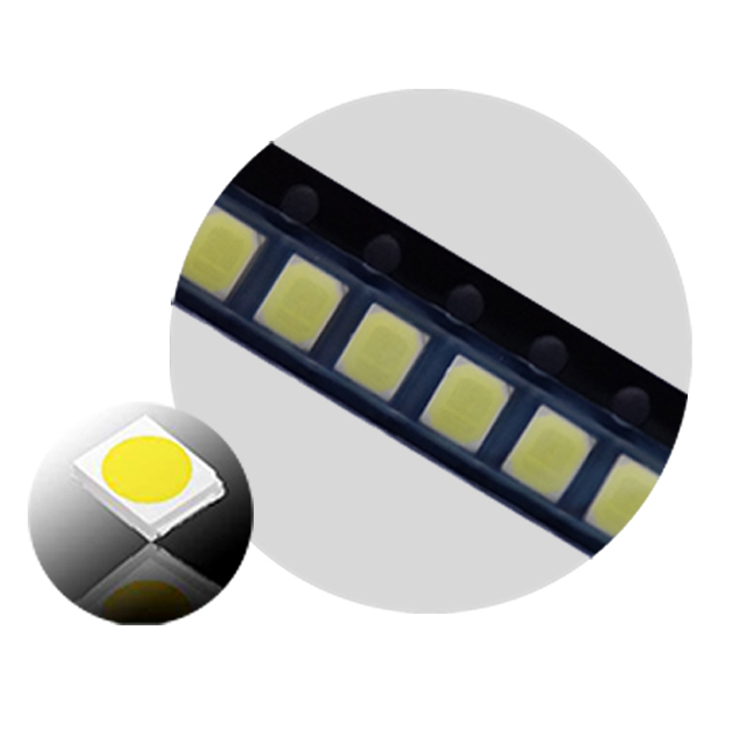

| Light Source | Super high brightness SMD LED 780PCS/panel;8 000K CT;LED Lifespan of 100 000hours | |
| Electric Parameters | Global Voltage Adaptive built-in power;AC90V-240V;50/60Hz | |
| Brightness Setting | PWM dimming system;1.77 inch LCD displayer,brightness 0-100 stages adjustable among 0-6000cd/㎡ | |
| Clip device | Slicone clip device | |
| Mount Type | Wall-mounte or bracket | |
| Application Films | General film,digital film,breast mamography film | |
| Sensor function | Separate control of each panel,automatic sensing function,memory function,delay power off function | |
| Viewing Uniformity | ≥90% | |
| Working Environment | Room Average Illuminance should no more than 100 lux | |
| Features | High-efficient and durable LED light source technology Excellent light source arrangement Imported acrylic plate High frequency digital PWM technology High-definition reading experience Innovative knob operation and LCD display Reliable silicone film clip device | |
