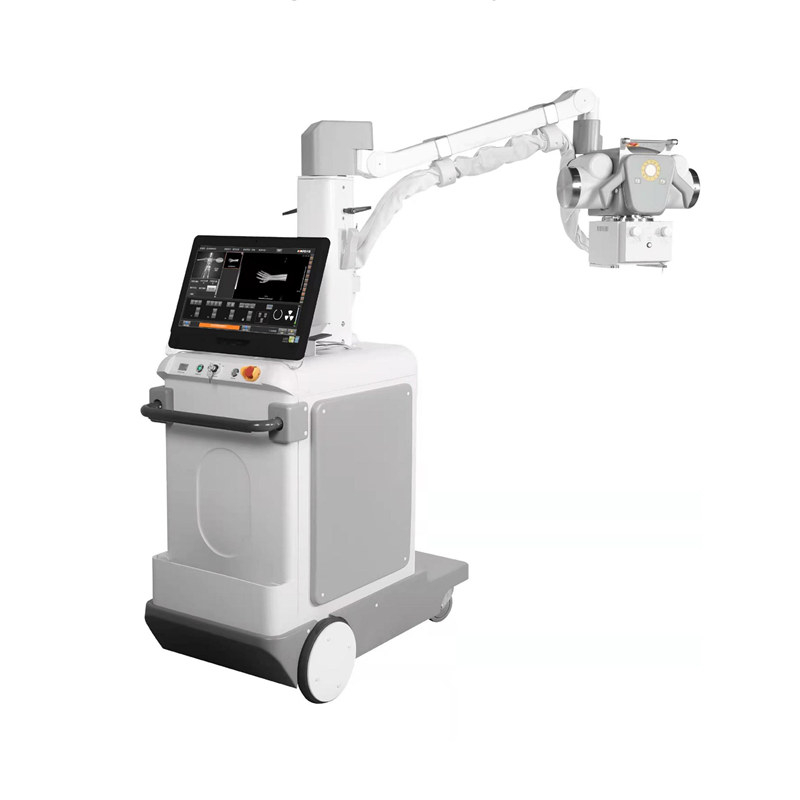

Digital Mobile X-ray Machine

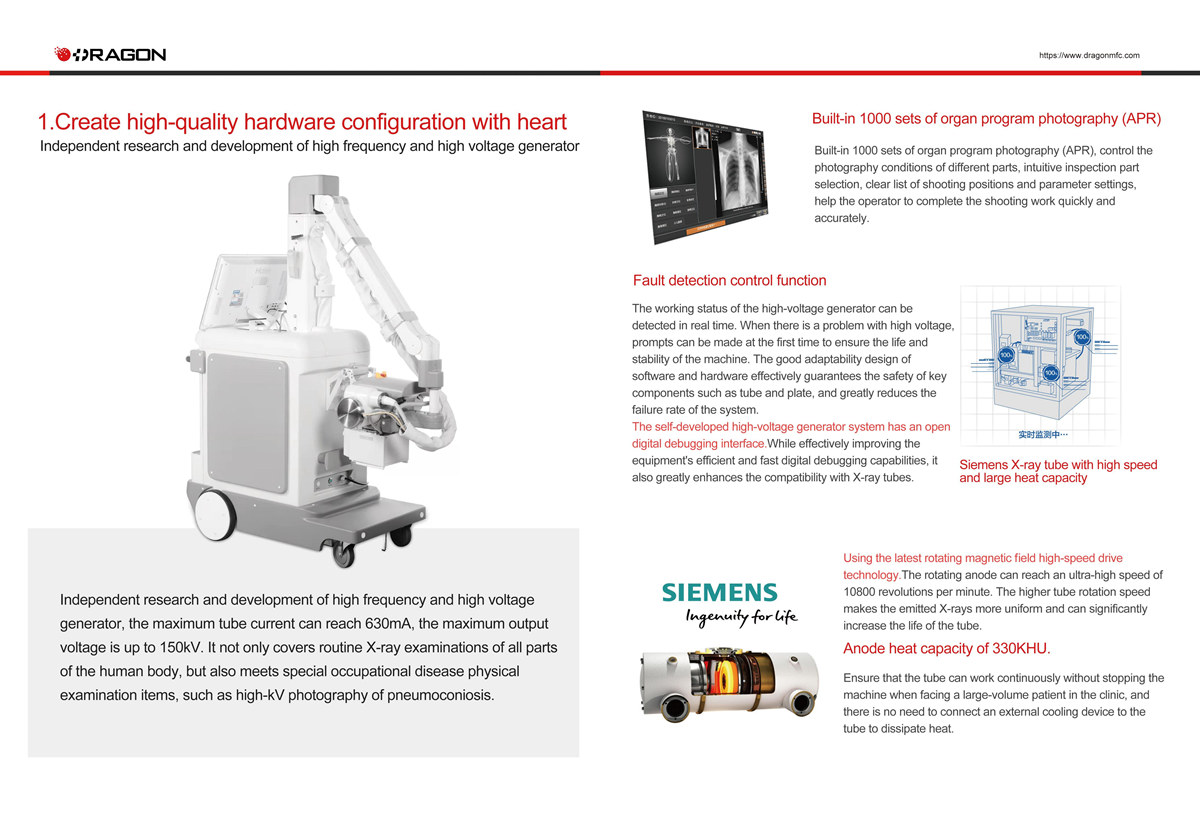

1.Create high-quality hardware configuration with heart Independ

Independent research and development of high frequency and high voltage generator

Independent research and development of high frequency and high voltage generator, the maximum tube current can reach 630mA, the maximum output voltage is up to 150kV. It not only covers routine X-ray examinations of all parts of the human body, but also meets special occupational disease physical examination items, such as high-kV photography of pneumoconiosis.

Built-in 1000 sets of organ program photography (APR)

Built-in1000 sets of organ program photography (APR), control the photography conditions of different parts, intuitive inspection part selection, clear list of shooting positions and parameter settings, help the operator to complete the shooting work quickly and accurately.

Fault detection control function

The working status of the high-voltage generator can be

detected in real time. When there is a problem with high voltage, prompts can be made at the first time to ensure the life and stability of the machine. The good adaptability design of software and hardware effectively guarantees the safety of key components such as tube and plate, and greatly reduces the failure rate of the system.

The self-developed high-voltage generator system has an open digital debugging interface. While effectively improving the equipment's efficient and fast digital debugging capabilities, it also greatly enhances the compatibility with X-ray tubes.

Using the latest rotating magnetic field high-speed drive

technology.The rotating anode can reach an ultra-high speed of10800 revolutions per minute. The higher tube rotation speed makes the emitted X-rays more uniform and can significantly increase the life of the tube.

Anode heat capacity of 330KHU.

Ensure that the tube can work continuously without stopping the machine when facing a large-volume patient in the clinic, and there is no need to connect an external cooling device to the tube to dissipate heat.

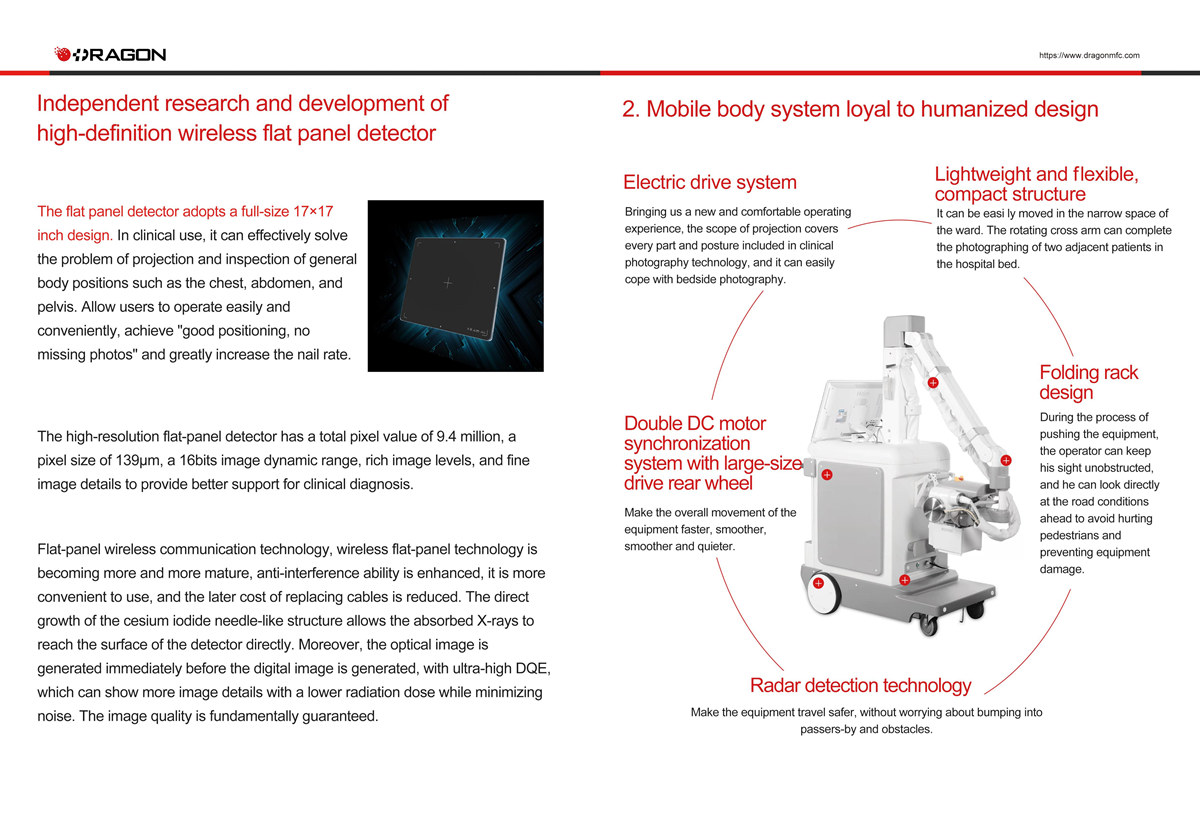

Independent research and development of high-definition wireless flat panel detector

The flat panel detector adopts a full-size 17x17 inch design. In clinical use, it can effectively solve the problem of projection and inspection of general body positions such as the chest, abdomen, and pelvis. Allow users to operate easily and conveniently, achieve "good positioning, no missing photos" and greatly increase the nail rate.

The high-resolution flat-panel detector has a total pixel value of 9.4 million, a pixel size of 139μm, a 16bits image dynamic range, rich image levels, and fine image details to provide better support for clinical diagnosis.

Flat-panel wireless communication technology, wireless flat-panel technology is becoming more and more mature, anti-interference ability is enhanced, it is more convenient to use, and the later cost of replacing cables is reduced. The direct growth of the cesium iodide needle-like structure allows the absorbed X-rays to reach the surface of the detector directly. Moreover, the optical image is

generated immediately before the digital image is generated, with ultra-high DQE, which can show more image details with a lower radiation dose while minimizing noise. The image quality is fundamentally guaranteed.

2. Mobile body system loyal to humanized design

Electric drive system

Bringing us a new and comfortable operating experience, the scope of projection covers every part and posture included in clinical photography technology, and it can easily cope with bedside photography.

Lightweight and flexible, compact structure

It can be easi ly moved in the narrow space of the ward. The rotating cross arm can complete the photographing of two adjacent patients in the hospital bed.

Double DC motor synchronization system with large-size drive rear wheel

Make the overall movement of the equipment faster, smoother, smoother and quieter.

Folding rack design

During the process of pushing the equipment, the operator can keep his sight unobstructed, and he can look directly at the road conditions ahead to avoid hurting pedestrians and preventing equipment damage.

Radar detection technology

Make the equipment travel safer, without worrying about bumping into passers-by and obstacles.

3. Independent research and development of professional medical collection workstations

Windows operating system

The medical image acquisition and processing workstation based on this system is currently at the highest level in terms of technology content, stability and work efficiency .The powerful hardware configuration meets the demand for large data volume and the high-performance requirements in the collection process.

19-inch capacitive touch screen

The exposure parameters can be set intuitively and quickly, and the operation is smooth and free. The high-definition display screen can display the captured images in time, immediately perform image post-processing, image storage and transmission and other functions.

Five-in-one workstation

The system includes five modules: patient management, image acquisition and high-voltage control, image processing, film printing, and diagnostic report. This truly achieves a one-stop operation, allowing one workstation to achieve the function of multiple workstations, saving users a lot of purchase costs.

Abundant clinical application software

It contains a wealth of image processing functions and management functions, among which a variety of advanced processing functions can optimize the processing of the collected images.

• Automatically process images by anatomy

• Rotate, flip, zoom, crop

• ROI、LUT

• Enhance and reduce noise

• Equalization enhancement processing

• Image annotation, marking function, and patient exposure condition feedback function

• Image measurement, angle measurement, straight line measurement

• Cardiothoracic ratio measurement

• Support split screen display, multi-task parallel processing

• lmage sending, searching and editing patient information

• Scale bar, gray bar display

• Window width/window level adjustment

• Images are saved locally

• Remaining space display

• Mouse drag-and-drop operation, irregular typesetting and printing can be performed, and more than 5 printers are supported at the same time

• It has the functions of editing and storing graphic diagnostic reports. Viewing images and editing reports can be performed at the same time Image backup, image import CD, DVD burning

• Patient registration, including local registration, Worklist network search, support barcode scanning

• Comply with DICOM3.0 standard, support print management service and storage service

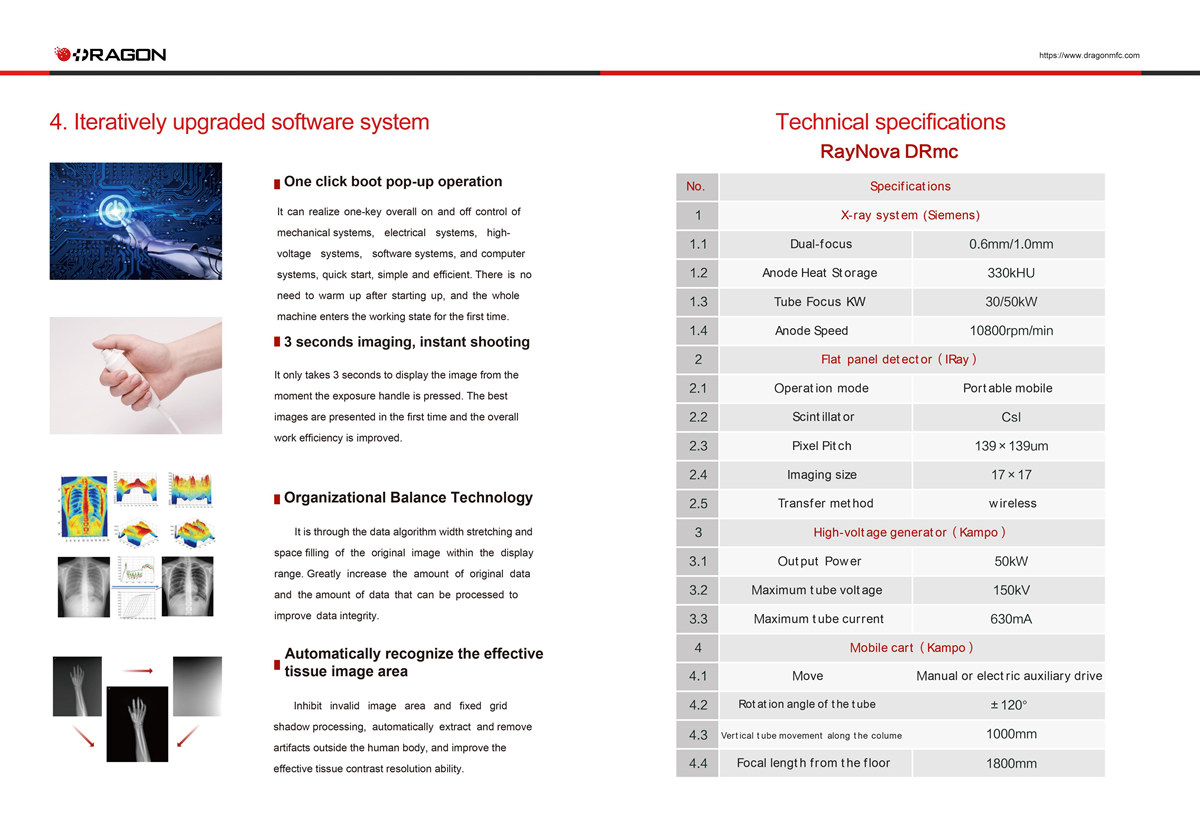

4. Iteratively upgraded software system

One click boot pop-up operation

It can realize one-key overall on and off control of mechanical systems, electrical systems, high- voltage systems, software systems, and computer systems, quick start, simple and efficient. There is no need to warm up after starting up, and the whole machine enters the working state for the first time.

13 seconds imaging, instant shooting

It only takes 3 seconds to display the image from the moment the exposure handle is pressed. The best images are presented in the first time and the overall work efficiency is improved.

Organizational Balance Technology

It is through the data algorithm width stretching and space filling of the original image within the display range. Greatly increase the amount of original data and the amount of data that can be processed to improve data integrity.

Automatically recognize the effective tissue image area

Inhibit invalid image area and fixed grid shadow processing,automatically extract and remove artifacts outside the human body, and improve the effective tissue contrast resolution ability.
