Folding stretchers and scoop stretchers are two essential portable rescue devices widely used in emergency medical services, disaster relief, military casualty evacuation, and on-site trauma treatment. Both are designed to transport patients efficiently and improve emergency response capabilities, but they differ fundamentally in structural design, working principles, core functions, applicable scenarios, and operational advantages. Understanding their distinct features and differences is critical for emergency responders to select the right equipment, minimize secondary injuries, and optimize patient outcomes in time-sensitive rescue situations.
A folding stretcher is a lightweight, portable emergency apparatus engineered to immobilize, and transport injured, ill, or deceased individuals. Its core design features a foldable integral frame, mainly constructed with high-strength aluminum alloy, supporting multi-angle folding structures including 2-fold and 4-fold designs. Equipped with universal built-in wheels and multiple ergonomic handles, it adopts an integrated platform structure that keeps the patient in a stable supine position throughout transportation. The core design goals are rapid deployment, convenient storage, and adaptable mobile transportation in diverse emergency environments.
After decades of iterative upgrades, the folding stretcher has evolved from simple military standardized frames in WWI and metal frames in WWII to modern models with hydraulic height adjustment, adjustable backrests, and reinforced safety structures, becoming a versatile mainstream rescue tool for daily emergency and mass casualty rescue scenarios.

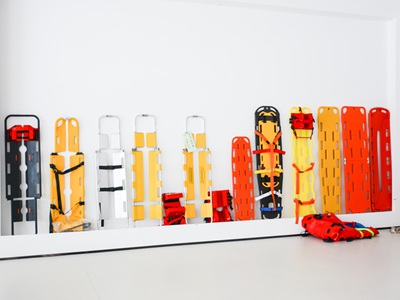

A scoop stretcher is a professional trauma-specific transfer device focused on minimal patient movement. It features a unique split symmetrical structure, which can be completely separated into two independent halves, each consisting of a torso panel and a foot panel connected by folding hinges. Made of high-grade aluminum alloy or 100% virgin high-density polyethylene (HDPE), it boasts radiolucency, corrosion resistance, and easy cleaning properties. The core design concept is to avoid lifting or rolling patients, achieving zero additional movement during patient transfer and fixation.
Different from conventional stretchers, its split splicing structure allows rescuers to slide the two halves under the patient’s body from both sides and re-lock them to form a complete bearing platform, which is specially optimized for high-risk trauma patients with suspected spinal injuries.
The folding stretcher supports ultra-fast on-site assembly and deployment, with full structural fixation completed within 5 minutes. Rescuers only need to unfold the folded compact frame, fix the structural joints, and fasten safety straps to complete preparation. Relying on its integrated stable platform, multiple rescuers can cooperate via multi-directional handles to lift and transfer patients or use the bottom wheels for flat ground push-and-pull transportation. It is suitable for rapid deployment in various open and semi-confined spaces, with simple operation and no professional trauma operation requirements.
The operation of a scoop stretcher follows a precise trauma protection process. First, unlock the locking mechanism and separate the device into two symmetrical halves. Place the two halves on the left and right sides of the patient respectively, gently slide the panels under the patient’s torso and legs without lifting or rolling the patient, then re-splice and lock the two halves tightly, and finally fix the patient with safety straps. This working principle fundamentally avoids the twisting and displacement of the patient’s spine and limbs caused by manual handling. Clinical data shows that compared with manual lifting and ordinary stretcher transfer, scoop stretchers can reduce the incidence of secondary trauma by up to 30%.
Key Operational Note: The locking mechanism must be fully checked and engaged before lifting and transporting patients to prevent accidental separation during rescue.
Folding stretchers focus on universal emergency rescue and large-scale emergency response, with strong environmental adaptability. They are widely used in daily emergency medical services, public event medical security (sports events, large gatherings), disaster site rescue, and military casualty evacuation. Their compact foldable design enables efficient storage in narrow spaces such as ambulances, stairwells, and emergency vehicles, supporting rapid access and deployment at any time. They are suitable for most common injured patients, including mild to moderate trauma, unconscious patients, and non-spinal injury patients, and adapt to various complex terrains and harsh weather conditions with corrosion-resistant and durable materials.
Scoop stretchers are specialized equipment for high-risk trauma rescue, with highly targeted application indications. They are mandatory for patients with suspected spinal cord injuries, and the preferred device for trauma cases such as high-altitude falls, motor vehicle accidents, pelvic or femur fractures. In addition, they excel at patient extrication in confined spaces including vehicle interiors and trenches, minimizing on-site patient handling and shortening rescue time. Clinical guidelines recommend scoop stretchers for multi-system trauma patients requiring strict spinal motion restriction. It is worth noting that scoop stretchers are more suitable for short-distance on-site extrication and transfer, and not ideal for long-distance transportation.
Comparison Dimension | Folding Stretcher | Scoop Stretcher |
|---|---|---|
Immobilization Effect | Provides basic overall immobilization, effective for ordinary injuries; limited protection for spinal injury patients | Achieves precise spinal and limb immobilization, maintains neutral body alignment, effectively prevents neurological deterioration and secondary injury |
Assembly & Deployment | 5-minute rapid on-site assembly, no pre-assembly required; 2-fold/4-fold optional structures for flexible use | Fast splitting and splicing operation, professional standardized operation required to ensure safety |
Portability & Storage | Ultra-compact after folding, 4-fold model saves maximum storage space, suitable for batch storage and vehicle carrying | Split storage saves space, but the overall structure is more specialized and less flexible for daily storage |
Environmental Adaptability | Corrosion-resistant and weather-resistant materials, adaptable to various terrains, disaster sites and battlefield environments | Waterproof and easy-to-clean surface, radiolucent design supports on-site X-ray imaging without patient transfer |
Weight Capacity | Diverse load-bearing models, suitable for patients of various body types | Standard models support 350–500 pounds, requiring strict load check before use |
Transport Distance | Suitable for short and medium-long distance continuous transportation | Only recommended for short-distance on-site extrication and transfer |
Advantages: Lightweight and highly portable, fast deployment speed, simple operation with low professional threshold; integrated stable platform reduces rescue personnel’s physical strain; strong versatility, compatible with daily emergency, public security, disaster relief and multiple scenarios; diverse folding structures meet different storage space needs, ensuring high accessibility in emergencies.
Limitations: Ordinary folding stretchers cannot achieve ultra-fine immobilization of spine and local fractures, and there is a risk of secondary injury when transferring severe trauma patients with spinal damage.
Advantages: Unique split splicing structure realizes zero-lift patient transfer, minimizing spinal movement and secondary trauma risk; radiolucent material supports real-time on-site imaging diagnosis, avoiding repeated patient handling; curved body design improves patient comfort and reduces pressure point damage.
Limitations: Strict operational specifications are required, improper use may cause body misalignment and local pressure injuries; single application scenario, poor versatility for ordinary non-trauma patients; not suitable for long-distance continuous transportation.
Select folding stretchers for routine emergency transfers, mass casualty incidents, public event medical support, and rescue of non-specific injured patients. It is the preferred general-purpose equipment for daily emergency medical work due to its high efficiency, convenience and strong adaptability.
Select scoop stretchers for all suspected spinal cord injuries, severe falls, traffic accident trauma, pelvic and limb fracture patients, and patient extrication in confined spaces. It is a special safety guarantee tool for high-risk trauma rescue to strictly control patient movement.
Both stretchers support convenient daily disinfection and maintenance. The waterproof and smooth surface of folding stretchers can be quickly wiped and disinfected with standard medical disinfectants. Scoop stretchers made of HDPE and treated aluminum alloy can resist contamination, and regular disinfection in accordance with manufacturer specifications can effectively avoid cross-infection. Both devices require regular inspection of structural joints, locking mechanisms and safety straps to ensure stable performance during repeated use.
In short, folding stretchers are universal, high-efficiency emergency transport tools focusing on rapid deployment and versatile scenario adaptation, while scoop stretchers are professional trauma protection tools focusing on minimal movement and precise immobilization. Mastering the differences between the two devices and applying them accurately according to on-site patient conditions and rescue environments is the key to improving emergency rescue efficiency and maximizing patient safety protection.
