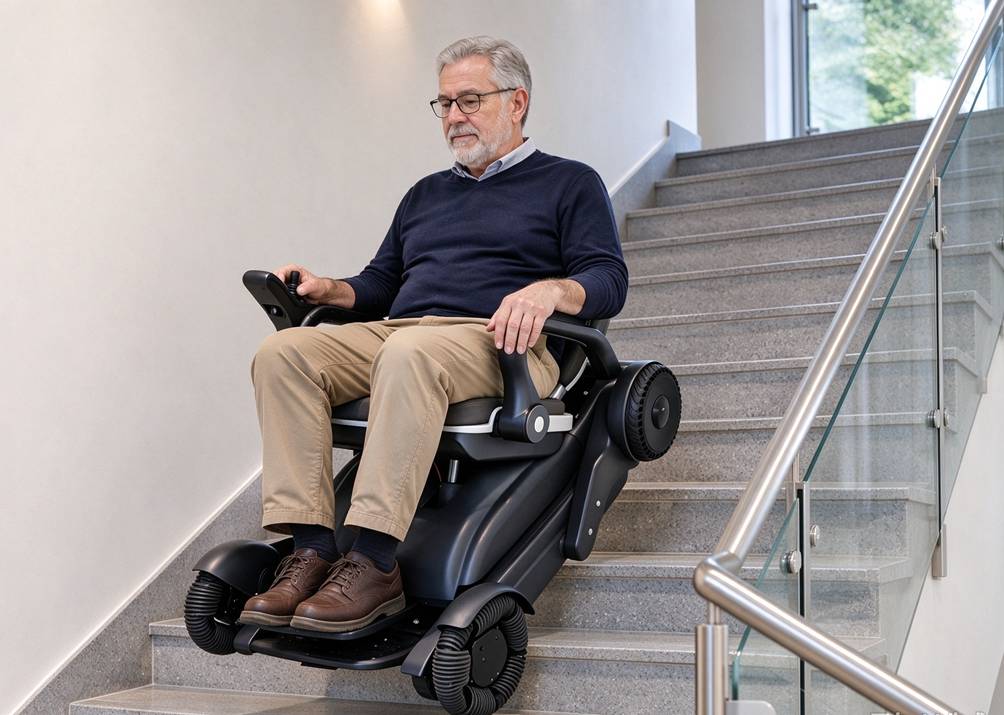

A smart stair-climbing wheelchair mobility robot is a powered wheelchair. It uses sensors, motors, and a control unit to carry a seated user up and down stairs and over uneven ground. This device combines wheelchair seating with robotic balance and drive technology. It matters because users can navigate steps in homes, older buildings, and public spaces where elevators are not available.
Smart stair-climbing wheelchair robots use sensors and motors to carry users up stairs and over rough ground safely.
These robots climb stairs step by step with tracks and keep the seat level for comfort and safety.
Before buying, check how well the robot handles different surfaces, where you will use it, and if insurance or programs can help pay for it.
A smart stair-climbing wheelchair mobility robot is a powered mobility device. It carries a seated user across flat floors, up staircases, and over uneven terrain. Robotic balance and drive technology replace manual lifting. The user stays seated throughout the entire journey.
The machine relies on several integrated parts. The table below summarizes each one.
Core Component | Description / Function |
|---|---|
Frame body | Structural base that supports the seating system and mobility mechanisms |
Seating system | Holds the user and adjusts height and posture through telescopic rods and electric push rods |
Mobility mechanisms | Paired left and right units with joint motors and integrated drive wheels for rolling and stepping |
Main controller | Switches between flat-ground wheel mode and climbing leg mode and plans the climbing gait |
Environmental perception module | Supplies terrain data for automatic mode switching and path planning |
Tracked drive systems, electric powered operation, and integrated seating with safety belts complete the build.
The three elements form a closed loop. Sensors first detect stairs, tilt, and nearby obstacles. A controller then processes these signals and regulates motor functions. Motor drivers finally adjust speed and direction, and the motors propel the chair and control braking during descent. Each stage feeds the next, so the smart stair-climbing wheelchair mobility robot responds to terrain in real time.
The climb follows a defined sequence. A rider or caregiver first aligns the chair at the base or top of the staircase and secures the user with a harness or seat belt. The operator then switches the unit from flat-ground wheel mode to track mode. Built-in sensors detect the angle and edge of each step, so the system knows when to move and when to stop. The tracks grip one step at a time in a slow, controlled rhythm rather than a continuous roll. Automatic brakes lock the tracks in place if the chair stops midway, which prevents sliding or rolling back.
An internal tilt mechanism keeps the seat level during the ascent or descent. The user stays upright and comfortable, even on a steep flight. This balancing action works continuously, so the smart stair-climbing wheelchair mobility robot adjusts to each step without input from the rider.
Modern designs build safety into the structure itself. Patent documentation on stair-climbing wheelchair robots describes systems built for high safety, safe riding, and rollover prevention.
The design goals include "Safe ride" and "Prevent rolling," which point to rollover prevention and stable riding as core engineering targets.
Adjustable safety belts, positive locking hinges, and high-friction toothed tracks reinforce these goals in daily use.
Buyers should match performance specifications to the terrain the device will face most often. The table below highlights the key considerations.
Performance specification | Key consideration |
|---|---|
Speed over level ground | Some devices move so slowly on flat surfaces that they work poorly as a primary mobility aid (typical walking speed is about 2.5 mph). |
Indoor maneuverability | Most designs fit ISO 7193 footprint limits, yet tight 90° hallway turns may still require stopping and pivoting. |
Floor and carpet damage | Skidding turn methods can mark floors and carpets. |
Terrain and obstacle handling | Small wheels can stall on bumpy ground or during obstacle negotiation. |
Real-world variability | Sensors may misread reflective or low-contrast step surfaces. |
A careful buyer also weighs safety, comfort, battery range, and ease of operation. Advanced technology only helps when users and caregivers can run it with confidence.
The intended setting shapes the choice. Indoor stairs, outdoor pathways, uneven roads, and public buildings each demand different performance levels. Regional rules matter too. The United States ties accessibility to the Americans with Disabilities Act, and insurance frameworks shape demand. Canada procures through provincial health authorities. Europe enforces medical device compliance and accessibility rights, and the UK follows National Health Service procurement guidelines that favor cost-effectiveness and durability.
Funding often decides the purchase. Original Medicare rarely covers stair-climbing capability, and no dedicated billing code exists. Medicaid varies by state, and the VA reviews requests case by case. Private insurers often exclude these devices. An HSA or FSA with a Letter of Medical Necessity remains the most common successful funding path. Equipment prices vary widely, and payment plans, dealer discounts, and nonprofit aid programs can ease the burden. A smart stair-climbing wheelchair mobility robot is a major investment, so confirm coverage before committing.
A smart stair-climbing wheelchair mobility robot is a sensor-driven powered wheelchair. It climbs stairs through motorized mechanisms with built-in stabilization and safety features. Choosing one comes down to performance, fit, compliance, and cost. Readers can use these three points as a simple checklist when researching options.
It carries a seated user across flat floors and up or down staircases. Sensors, motors, and a control unit handle balance and drive. Users gain access to buildings without elevators.
Tracks grip each step in a slow, controlled rhythm. An internal tilt mechanism keeps the seat level. Safety belts and locking hinges add further protection.
Buyers should confirm terrain fit, intended locations, and local compliance rules. They should also verify funding options and total cost before committing to a purchase.
