Ultra Slim LED X Ray Film Viewer

Name: Ultra Slim LED X Ray Film Viewer
Brand: DRAGON
Rating: 5.0 (15 reviews)

It is a new generation of viewing device that uses LED light sources, is ultra-thin, and has high brightness. It features adjustable color temperature and an automatic sensing switch function, being energy-efficient and long-lasting. It is widely used in medical imaging interpretation.

Model:
RAD-FV1A/2A/3A/4A
Brand:
DRAGON

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

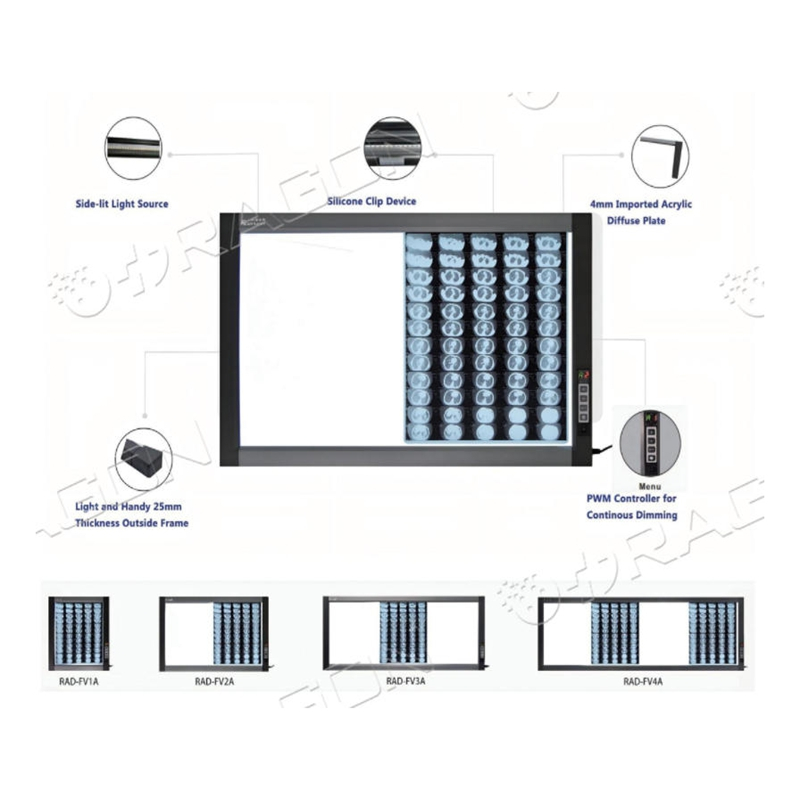

X RAY Film Viewer
Model NO.	RAD-FV1A	RAD-FV2A	RAD-FV3A	RAD-FV4A
External Size(mm)	450×500×25	810×500×25	1170×500×25	1530×500×25
Visual Size(mm)	360×420	720×420	1080×420	1440×420
Max.Power	30W	60W	90W	120W
Maximum X-Ray filmreading size	17×14inch(355.6×431.8mm)
Light Source	lifespan:super high brightness SMD LED 144pc/panel; CT> 6500K;lifespan of 100000hrs
Electric Parameters	Global Voltage Adaptive built-in power;AC90V-240V;50/60Hz
Brightness Setting	PWM dimming system,minimum brightnesss≤300cd/m2 and the maximum brightness≥24000cd/m2. The brightness can be customized
Clip device	Slicone clip device
Mount Type	Wall mounted;Bracket type (optional)
Application Films	General film,digital film,breast mamography film
Sensor function	Separate control of each panel,automatic sensing function,plug is bright,memory function,delay power off function
Viewing Uniformity	≥90%
Working Environment	Room Average Illuminance Should No More Than 100 lux
