Stair Climbing Wheelchair and Wheelchair Lift Buying Guide

Choose your stair climbing wheelchair and wheelchair lift as one paired system. Match three things first: your stairs and space, the user's mobility and weight needs, and your budget. Then confirm safety and compliance.

Each stair has a standard height of approximately 7.5 inches, though you should measure the exact rise.

Check the fit against your stair type, the user's transfer ability, and your home layout before you compare models.

Key Takeaways

• Measure your stairs and check the user's mobility needs first. This step ensures the wheelchair and lift fit your home and the user safely.

• Compare tracked, wheeled, and hybrid wheelchairs. Match the type to your staircase for smooth and secure rides.

• Confirm safety features and local codes before buying. Plan your budget and installation to avoid surprises and ensure long-term reliability.

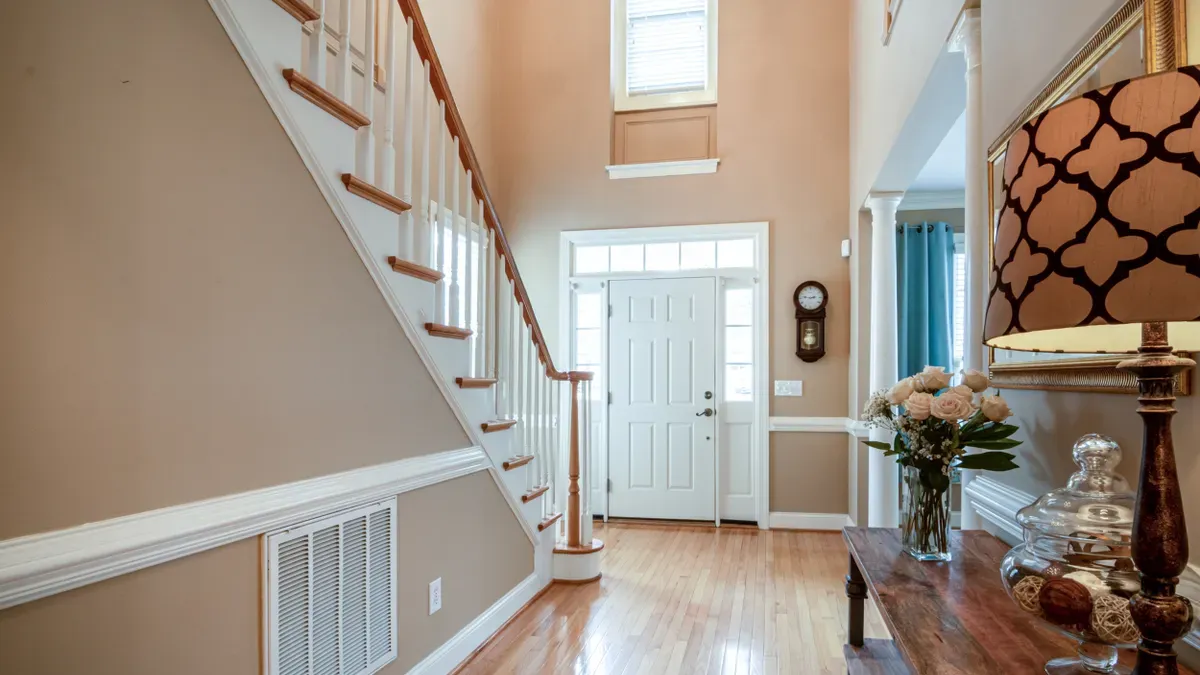

Start With Your Home's Stairs and Space

Your staircase sets the limits for every decision that follows. Measure it carefully before you shop.

Identify Your Stair Type and Dimensions

Note whether your stairs run straight, curve, or turn. Record the rise and tread depth of a typical step, the total number of steps, and the overall vertical climb. A standard step rises about 7.5 inches, but your home may differ. These numbers determine which stair climbing wheelchair models can handle your staircase safely.

Check Landings, Turns, and Doorway Clearances

Walk the full route from the starting floor to the destination. Measure the width of every doorway and the open space at each landing. Tight turns and narrow halls restrict maneuverability. Confirm the user can reach the stairs and that a caregiver has room to stand behind the chair during operation.

Plan Where the Wheelchair Lift Will Sit

Choose a location for the wheelchair lift before you compare models. A platform lift needs a clear footprint at the top and bottom of the run. An inclined lift follows the staircase and requires mounting space along the wall or rail. Verify that the chosen spot keeps walkways open and does not block doors or exits.

Match the System to the User's Needs

Your staircase sets the physical limits. The user's body and abilities set the rest. Evaluate these three factors before you compare any models.

Assess Mobility Level and Transfer Ability

Ask one key question first: can the user move from a wheelchair into a lift seat without help? The answer shapes your entire system choice.

A stair climbing wheelchair suits users with limited mobility who need to remain in their wheelchair. Platform lifts carry the wheelchair and user together. This option proves essential for users who cannot transfer easily.

Rule out a solution when the user cannot sit securely in the chair, cannot perform safe transfers, or cannot operate the equipment safely. Weight, body dimensions, and staircase clearance also matter here.

Confirm Weight Capacity With Room to Spare

Match the rated capacity to the user's weight, then add a margin. Standard models often support up to 180 kg, and heavy-duty configurations reach 250 kg or more. Extra capacity protects the motor and tracks over years of daily use. Include the weight of any accessories, cushions, or carried items in your calculation.

Consider Who Else Will Operate the System

Identify every person who will run the equipment. Caregivers, family members, and visiting aides all need confidence with the controls. Look for multi-speed settings and clear instructions. A system that one person masters easily serves the whole household better.

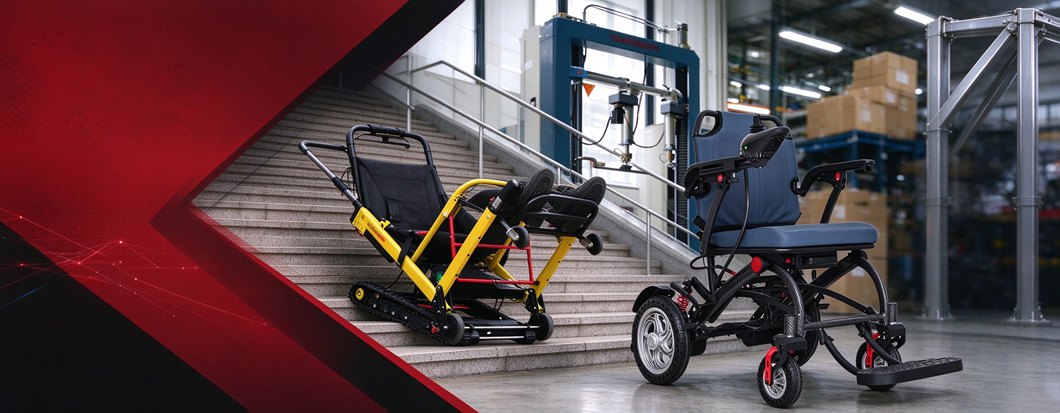

Compare Stair Climbing Wheelchair Types

Three drive designs dominate the market: tracked, wheeled, and hybrid. Each one solves a different problem. Your staircase geometry and the user's daily routine will point you toward the right one.

Tracked Wheelchairs: Stability on Steep or Narrow Stairs

A tracked wheelchair runs on a continuous belt, much like a tank tread. The track spreads the user's weight across multiple steps at once. This design delivers the smoothest ride on steep flights and uneven outdoor steps.

Tracked models handle straight flights around 30 to 40 degrees. Many manufacturers publish a 35-degree optimum stair angle as the practical ceiling. Capacity figures cluster in a similar band across leading brands.

Strong climbing capacity up to 35°.

Battery performance matters just as much as climbing angle. A 20Ah lithium battery typically delivers up to 15 km per charge and supports roughly 500 continuous steps. A 13Ah pack covers a similar distance with the same step count. Plan a charging routine around your daily stair use, and keep the battery topped up between outings.

Tracked units rank as the heaviest option. They need landing space to rotate at the top and bottom of a flight. Their smooth motion and weight distribution reduce the balancing burden on the operator. This makes them a strong fit for home entrance steps, care facilities, and outdoor approaches.

Wheeled Stair Climbing Wheelchairs: Maneuverability and Simplicity

Wheeled stair climbers use rotating wheel clusters to walk up and down each step. The mechanism is simpler than a track system. The chair is lighter, and it turns more easily indoors.

This design suits regular, well-built stairs at a modest pitch. Wheeled models are less forgiving of damaged or uneven treads. Inspect your steps for loose edges and worn nosings before you commit to this type.

Turning space is the critical measurement here. Traditional wheelchairs need a 78 in × 60 in turning area. Standard models require a turning radius of at least 30 in. Electric wheelchairs, including advanced stair climbing models, can turn in as little as 20 in within a 40 in space. Measure your tightest corner and compare it against these figures.

Wheeled models place more of the stability burden on the caregiver. A strong braking and anti-tip system matters even more on these chairs.

The braking system is the single most critical feature, since it's what prevents unintended movement on a staircase. Look specifically for a mechanical backup brake that holds the chair even if the electrical system fails.

Check for a redundant brake that engages when the operator releases the controls. Confirm a mechanical backup holds the chair if the electronics fail. These features turn a simple design into a safe one.

Hybrid Designs: Flexibility for Mixed Staircases

A hybrid combines wheels and tracks in one frame. The design targets buildings with varied level changes: indoor flights, ramps, curbs, and short outdoor approaches.

The trade-off is complexity. A hybrid mechanism carries a higher service demand than a single-drive design. Weigh that against the flexibility you gain.

Hybrid designs also carry limits on unusual stair geometry. Crawler mechanisms handle uneven terrain well because a large contact surface keeps the chair moving even when part of the track lifts off the ground. Rotating in place, however, requires sliding over much of that contact area, which reduces stability. Spiral staircases with differing inner and outer tread lengths force the left and right tracks to contact at different angles. Narrow spirals prevent gradual turning and push the inner track into steep angles, which makes control difficult.

Planetary wheel designs offer another hybrid path. A passive mode change shifts the unit from rolling to walking on rotating legs. This approach climbs stairs and clears obstacles in both structured and unstructured environments. It still struggles on spiral stairs, and it produces a noticeable up-and-down swing over each step.

General electric stair climbers share a common boundary. They ascend and descend straight staircases well. They are not usable on varied stair types such as spiral staircases.

Match the drive design to your actual staircase, not to a brochure. A straight flight with a steady pitch rewards a tracked or wheeled model. A building with mixed level changes may justify a hybrid. A spiral staircase deserves a professional assessment before you buy any type.

Understand Your Wheelchair Lift Options

The wheelchair lift carries the user between floors and removes the staircase from the daily routine. Two families of equipment serve most homes: platform lifts and inclined lifts. Each one follows a different path along your stairs. Each one also demands a different amount of floor space. Study both before you settle on a model.

Platform Lifts: Straight Runs and Tight Spaces

A platform lift moves a level platform straight up and down between two landings. The user rolls onto the platform at the bottom, rides vertically, and rolls off at the top. This vertical motion makes the platform lift a natural fit for straight runs and tight spaces. You do not need a long staircase to justify one. A short rise between a garage and a living floor works just as well as a full flight.

Standard home units carry generous loads. A typical vertical platform lift supports up to 750 lbs, offers a net platform area of 18 square feet, and travels as far as 14 feet.

Those figures cover most residential needs with room to spare. The 14-foot travel limit handles a full story in many homes. Measure your total rise first, then confirm the model meets it.

Floor space decides whether a platform lift fits your home. Manufacturers publish equipment footprints for each configuration.

Overhead clearance matters as much as floor area. Per ASME A18.1, a vertical platform lift requires a minimum of 6 ft 8 in (80 in) of clear overhead at the upper landing. Standard interior platform dimensions run 36"–42" wide by 48"–60" deep. A 90-degree entry configuration typically requires the larger 42" x 60" platform. Check your ceiling height and your entry direction before you order.

Plan the space around the platform with the same care. Your layout must provide:

• Landing and clearance space for obstruction-free gate or door operation

• Space for smooth entry and exit from the platform

• Room for structural supports, electrical disconnects, and ADA-compliant maneuvering areas

• A few extra inches in front of the lift for tight entryways and landings

Even a few extra inches in front of the lift helps in tight entryways and landings. Small margins turn a cramped installation into a comfortable one.

Inclined Lifts: Following the Staircase Curve

An inclined lift travels along rails fixed to the staircase. The platform folds flat against the wall when idle, so the stairs stay open for other household members. This design follows the staircase curve, which makes it the better choice for L-shaped, U-shaped, and gently curved flights.

Weight capacity runs lower than a vertical platform lift. Inclined platform lifts typically max out at approximately 550 pounds. Confirm the combined weight of the user, the wheelchair, and any carried items against that figure.

Stair width sets the practical limit. Minimum stair width requirements generally fall between 32 and 36 inches to accommodate the platform while preserving egress pathways. Measure the narrowest point of your staircase, not the widest. A pinch point near a landing or handrail can rule out an inclined lift even when the main flight looks generous.

Rail mounting also needs a solid anchor surface. The rail carries the full load of the platform and the passenger. Inspect the wall or stringer along the entire run before you commit. A professional assessment confirms whether your staircase can take the rail system safely.

Confirm Lift and Wheelchair Compatibility

The wheelchair and the lift must work as one system. A perfect lift paired with the wrong chair still fails the user every day. Confirm compatibility on three fronts before you sign anything.

Start with the platform dimensions. Compare the wheelchair's footprint against the platform's usable area. The chair needs room to roll on, sit centered, and roll off without catching a wheel on a gate or threshold. A 42" x 60" platform gives more margin than a 36" x 48" model. Choose the larger platform when your space allows it.

Check the weight ratings together. The lift capacity must exceed the combined weight of the user and the wheelchair. A 550-pound inclined lift leaves less headroom than a 750-pound vertical platform lift. Add a safety margin for accessories, cushions, and carried bags.

Verify the control interface. Some users operate the lift from the platform. Others need a caregiver to call and send the unit. Confirm the controls match the user's reach, grip, and vision. Multi-speed settings and clear labeling help every operator in the household.

Finally, walk the full route with both devices in mind. The path from the wheelchair's parking spot to the lift platform must stay clear. The landing at the top must offer room to turn and exit. A paired system that fits the stairs, the user, and the daily routine delivers real independence. A mismatched pair delivers frustration.

Review Safety Features and Compliance

Safety and code compliance decide whether your system works legally and reliably for years. Address both before you sign a purchase agreement.

Key Safety Features to Look For

Start with the hardware that protects the user during every ride. Look for adjustable safety belts, positive locking hinges, and toothed high-friction tracks on the chair. On the lift side, confirm safety barriers and sensors, emergency stop controls, and non-skid platform surfaces. A mechanical backup brake that holds the chair when the electronics fail is essential. Check these features in person, not just on a spec sheet.

ADA Guidance and Local Code Requirements

Residential codes vary from state to state and even between municipalities. Each jurisdiction adopts one of nine national codes and often amends it. Some states require ASME A18.1 compliance, which adds features such as:

• An 18-inch toe plate

• A control wall extension

• A solid handrail

• A solid platform with safety pan

• A carriage gate

• Keyed toggles at both landings

• A code plate

Typical specifications include 80 inches of headroom, a platform-to-landing sill gap no greater than 1¼ inches, and a dedicated electrical circuit.

Permits, Inspections, and Professional Installation

For a wheelchair lift in a single-family home, permitting usually falls to your local municipality and reduces to a building permit, an electrical permit, or both. Most jurisdictions require a licensed contractor or certified elevator technician for the installation. A typical process runs as follows:

1. Apply for permits through the Authority Having Jurisdiction with drawings, compliance certifications, and electrical load calculations.

2. Install according to approved plans using licensed technicians.

3. Schedule rough-in, structural, and final inspections, including acceptance testing.

4. Obtain final approval and a Certificate of Compliance.

Confirm local requirements with your building inspector before you buy. Codes change often, and pre-approval protects your investment.

Analyze Costs and Build a Budget

Set your budget before you request quotes. A clear number keeps the conversation focused on systems that fit your home and your finances.

Purchase and Installation Costs

Expect the equipment price to cover only part of the total. Installation adds labor, electrical work, and any structural changes your home needs. A straight staircase with a nearby outlet costs far less to equip than a curved flight that requires custom rails and a new circuit. Ask each dealer for a written quote that separates equipment, installation, permits, and site preparation. Compare those line items side by side.

Ongoing Maintenance and Warranty Coverage

Plan for service costs from day one. Most manufacturers recommend annual inspections, and technicians check mechanical parts, safety sensors, electrical connections, and battery condition during each visit.

• Mechanical components typically carry two to five years of warranty coverage.

• Electrical components and batteries usually carry one to two years.

• Extended warranty options are available for long-term peace of mind.

Annual maintenance contracts often cost a few thousand per year and include cleaning, lubrication, battery checks, and safety tests. Many warranties require this yearly service to stay valid.

Funding and Insurance Questions to Ask

Funding help exists, but you must ask for it. Original Medicare generally treats a wheelchair lift as a home modification rather than durable medical equipment, so it does not cover the purchase. Other sources may help.

Call your insurer, your state Medicaid office, and your local Area Agency on Aging. Ask each one three questions: Does my condition qualify, what documentation do you need, and what is the approval timeline? Confirm the answers in writing before you commit to a purchase.

Plan Installation and Home Modifications

Structural and Electrical Considerations

Your home may need changes before the equipment arrives. Review these requirements with your installer during site preparation.

Typical projects involve a floor cutout, basic structural reinforcement, and a standard household electrical supply. Your installer will confirm voltage requirements, circuit capacity, and electrical safety standards. Verify structural stability and clear obstructions for smooth access.

Timeline and Disruption Expectations

Most installations follow a predictable schedule:

1. Site planning and quoting takes two to five business days.

2. A new concrete pad must cure for 48 to 72 hours.

3. Installation day usually takes one day; complex jobs may need two.

4. Inspections and permits follow local rules.

Expect limited construction noise and no major demolition. The crew leaves the work area clean. Plan to be home at the start and end of each day.

Questions to Ask Before You Buy

Ask your dealer these questions before you commit to a wheelchair lift:

• Who handles permits and inspections?

• What structural work does my home need?

• Which electrical upgrades apply to my installation?

• What does the warranty exclude?

• How long will the crew stay on site?

Clear answers protect your budget and your schedule.

Assess your stairs first, then define the user's needs. Compare wheelchair types, match the wheelchair lift, and verify safety and compliance. Budget and plan installation last. The best choice fits your home, the user, and your budget together, not the most feature-heavy option. Request an in-home assessment and confirm local requirements before you commit.

FAQ

Does a stair climbing wheelchair replace a wheelchair lift?

No. A stair climbing wheelchair handles stairs with a caregiver's help. A wheelchair lift moves the user between floors independently. Many homes pair both devices for daily flexibility and backup access.

Can I install a wheelchair lift in an older home?

Often, yes. Most installations need modest structural reinforcement and a dedicated circuit. Request an in-home assessment first. Your installer will confirm floor strength, ceiling height, and electrical capacity before you commit.

How do I verify a dealer's credentials?

Ask for licensing, insurance, and manufacturer certification. Request references from recent local installations. Confirm the dealer handles permits and inspections. A reputable dealer answers every question in writing.
