DW-BS001
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |

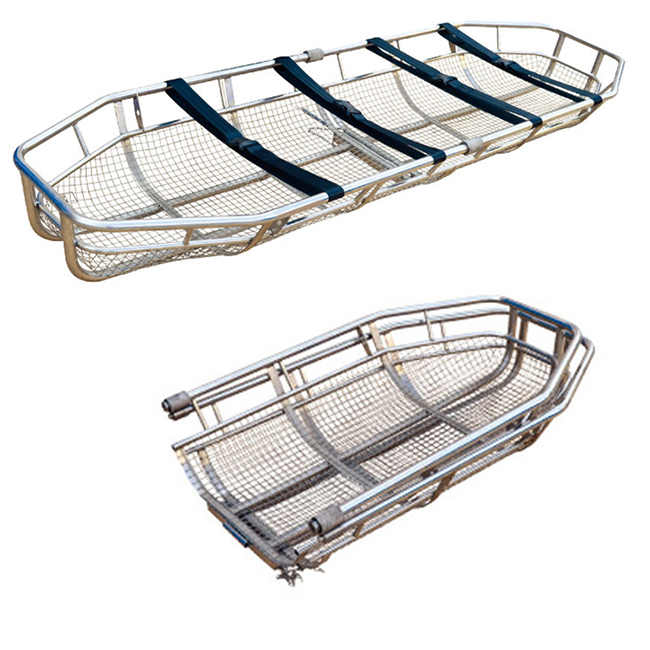

The Stainless Steel Basket Stretcher from the basket stretcher is designed to perform in a technical rescue environment and features the patented StratLoad point. These allow for a quick and easy rescue bridle attachment and protect the bridle carabiner from walls and rock surfaces.
The Stainless Steel Basket Stretcher is constructed of high-quality materials to survive almost all conditions, while the design itself provides a user-friendly working platform. Constructed from TIG welded stainless steel, it relies on its frame geometry, construction methods and materials to achieve its ultimate strength.
Due to its frame geometry and TIG welded construction, the basket stretcher is very strong, durable and functional. The top rail is 1 inch in diameter to make the stretcher easier to maneuver when carrying it for extended periods of time, and it is reinforced with double tubes at the head and foot ends for extra strength during vertical lifts.
This basket stretcher is manufactured in a very wide range of emergencies, the basket stretcher is strong and flexible for all types of assistance in special situations.
The basket stretcher is a reliable accessory that allows first responders to operate it quickly. Equipped with special slinging equipment, the stretcher is ideal for helicopter lifting and transport.
The basket stretcher has an adjustable foot fixing mechanism and safety belt. The basket stretcher is also designed to be secured inside a helicopter. All materials used are available in sizes suitable for the job and are fire resistant.
The basket stretcher does not release any toxic or polluting substances and is protected for high abrasion and corrosion resistance. The frame is strong and durable, and the simple and reliable device allows the operator to take first aid measures quickly.
| Model | Product size | Folded size | Net weight | Load Unit | Packing | ||
| (L*W*H) | (L*W*H) | Quantity | Size(L*W*H) | GW | |||
| DW-BS001 | 216×65×24cm | 108×65×24cm | 22kg | 350kg | 1 | 219×67×26cm | 25kg |
BASKET STRETCHER
The structure of this basket stretcher focuses on the particularity of first aid, such as rugged mountain, air or sea rescue.
APPLICATION
The hanging hook can be connected with the hook on the aircraft and is equipped with an adjustable foot safety mechanism seat belt.
Stainless Steel Basket Stretcher User-friendly designed for technical rescue; material survives extreme conditions.
5 Styles: Regular fits any backboard：Tapered - for easy access to tight areas，32" wide for obese patients， Two split for easy transport and storage.
TIG welded frame structure.
Smaller tube holder (2.5cm) makes long distance carrying easier and more comfortable.
StratLoad™ safety sling attachment point.
Durable and rust-resistant high-density polyethylene (HDPE) mesh allows water and air to pass through, but small holes prevent debris from entangling.
Tested to exceed 1136 kg (11 kN) static threshold.
StratLoad attachment point for secure sling attachment.
Reinforced 25.4 mm double top tube is compatible with any Ferno backboard.
Supplied with 4 steel double rod restraints.
Durathene mesh allows water and air flow.
Compatible with any Ferno backboard.
Conical feature allows easier access in tight areas.
basket stretcher molded HDPE back support.
Interlocking, pinless, bottom hinge.
Integral top rail with threaded collet.
basket stretcher designed to nest together when split for storage Assemble or disassemble in about 15 seconds.
Completely firm connection between the two parts of the stretcher.
FOR The FIRST-AID CAUSE,
0F COURSE YOU HAVETO CHOOSE THE RIGHT MATERIALS
The frame body is made of high-strength ABS material, which is light and compressive.
Choose a strong Oxford leather surface, durable and easy to clean.
DETAGHABLE DESIGN,
CONVENIENT AND EASYTO STORE
The design can be split, convenient and easy to stack, greatly reducing the occupied space, which is conducive to the application of first aid.
THERE IS A SAFETY BUCKLE INTHE MIDDLE,
WHICH IS SAFER
The connection between the middle of the two sides of the stretcher is fixed by a stainless steel safety buckle.
PROFESSIONAL STRETCHER,
IN LINE WITH INTERNATIONAL STANDARDS
The frame is durable, simple and reliable device allows the operator to take first aid measures safely and quickly.
SAFE AND NON-TOXIC ABS MATERIAL
The non-toxic and pollution-free ABS material is used, which is fire-resistant, wear-resistant and corrosion-resistant.
MULTIPLE HANDLE DESIGN
There are multiple handles on the edge of the stretcher, which is convenient for many people to lift during use.
LACE BUCKLE
The nylon strap is fastened with metal edging, which is strong and durable.
STAINL ESS STEEL METAL BUCKLE
Stretcher with stainless steel metal buckle
High strength and durable
BACK SAFETY BUCKLE DESIGN
The link at the bottom of the stretcher is also equipped with stainless steel safety buckle.
INSURANCE DEDUCTION DESIGN
The safety buckle at the bottom of the stretcher has a safety buckle
Ensure the safety of the wounded.
STRETCHER EDGE REINFORCEMENT
Aluminum aloy tubes reintorce the edge of the stretcher,
Ensure safety during use.
FASTEN THE SPLIT LINK
Hard rubber rod, not easy to detorm,
Split storage and labor saving and convenient.
FIRM NYL ON STRAP
Nylon straps to etfectively fx the wounded,
The bayonet design is more convenient to use.
FOOT FIXATOR
The position can be adjusted according to the height of the wounded.
