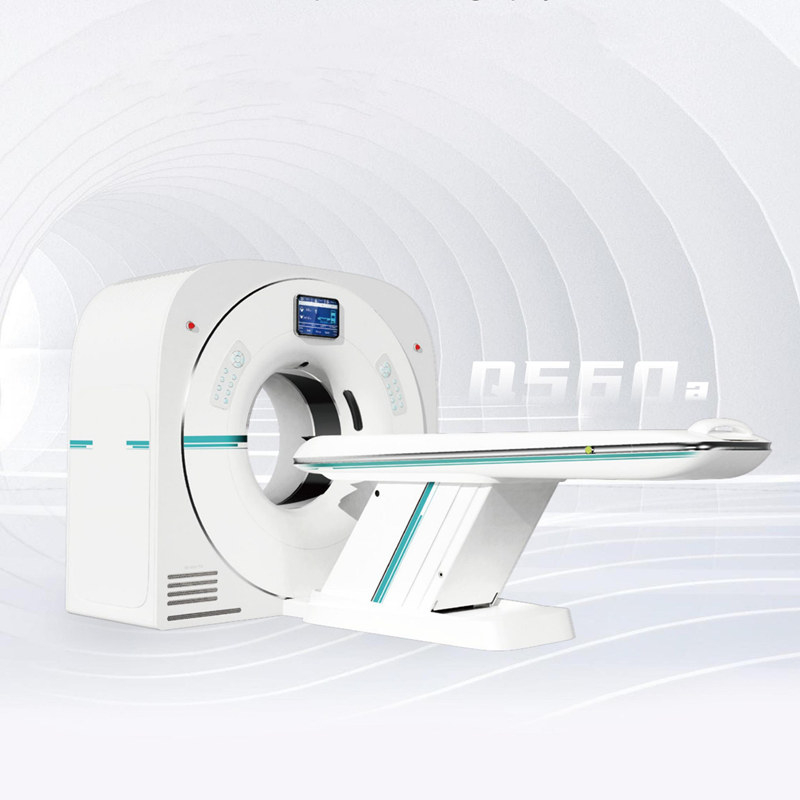

Quantum CT Q560a
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |

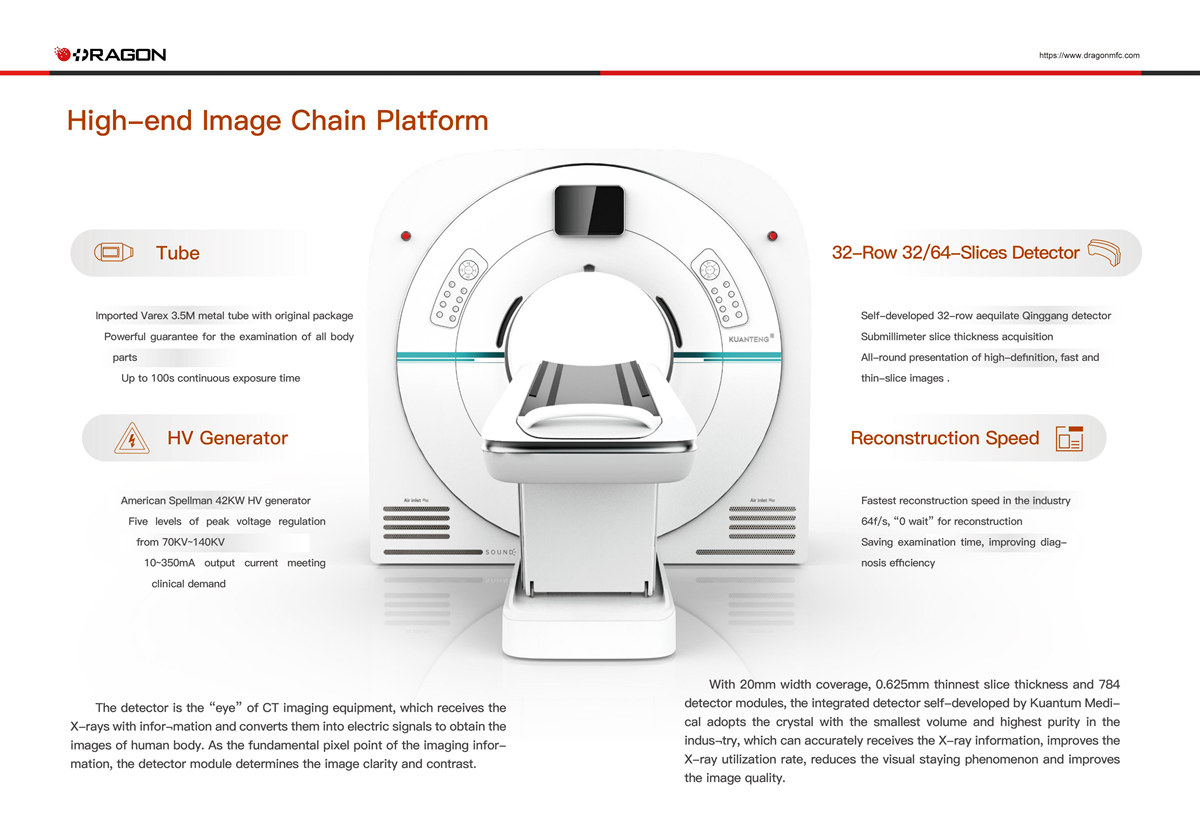

The detector is the"eye"of CT imaging equipment, which receives the X-rays with information and converts them into electric signals to obtain the images of human body. As the fundamental pixel point of the imaging information, the detector module determines the image clarity and contrast.
With 20mm width coverage,0.625mm thinnest slice thickness and 784 detector modules, the integrated detector self-developed by Kuan tum Medi- call adopts the crystal with the smallest volume and highest purity in the industry, which can accurately receive the X-ray information, improves the X-ray utilization rate, reduces the visual staying phenomenon and improves the image quality.

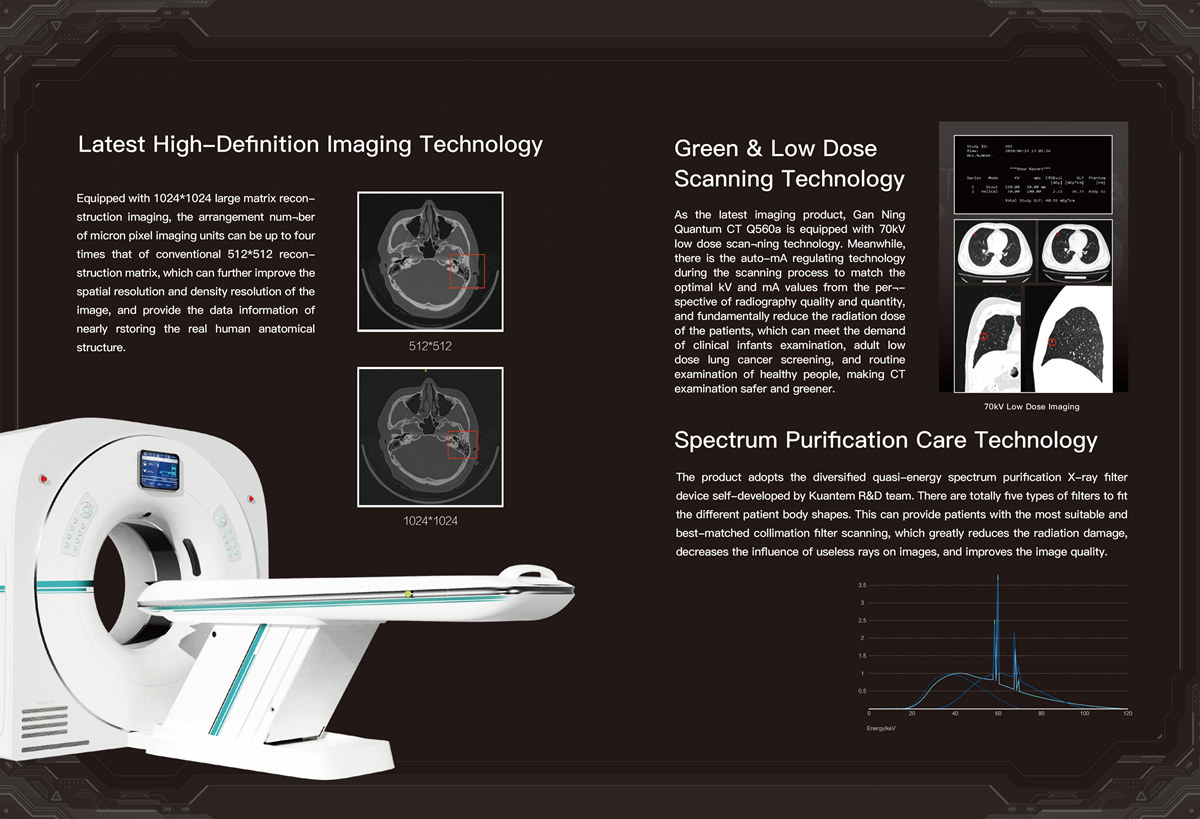

Latest High-Definition Imaging Technology
Equipped with 1024*1024 large matrix recon- striction imaging, the arrangement num-Ber of micron pixel imaging units can be up to four times that of conventional512*512 recon- striction matrix, which can further improve the spatial resolution and density resolution of the image, and provide the data information of nearly restoring the real human anatomical structure.
Green & Low Dose Scanning Technology
As the latest imaging product, Gan Ning Quantum CT Q560a is equipped with 70kV low dose scan-Ning technology. Meanwhile, there is the auto-mA regulating technology during the scanning process to match the optimal kV and mA values from the per-- spectate of radiography quality and quantity, and fundamentally reduce the radiation dose of the patients, which can meet the demand of clinical infants examination, adult low dose lung cancer screening, and routine examination of healthy people, making CT examination safer and greener.
Spectrum Purification Care Technology
The product adopts the diversifed quasi-energy spectrum purification X-ray filter device self-developed by Kuantem R&D team. There are totally five types of flters to fit the different patient body shapes. This can provide patients with the most suitable and best-matched collimation filter scanning, which greatly reduces the radiation damage, decreases the influence of useless rays on images, and improves the image quality.

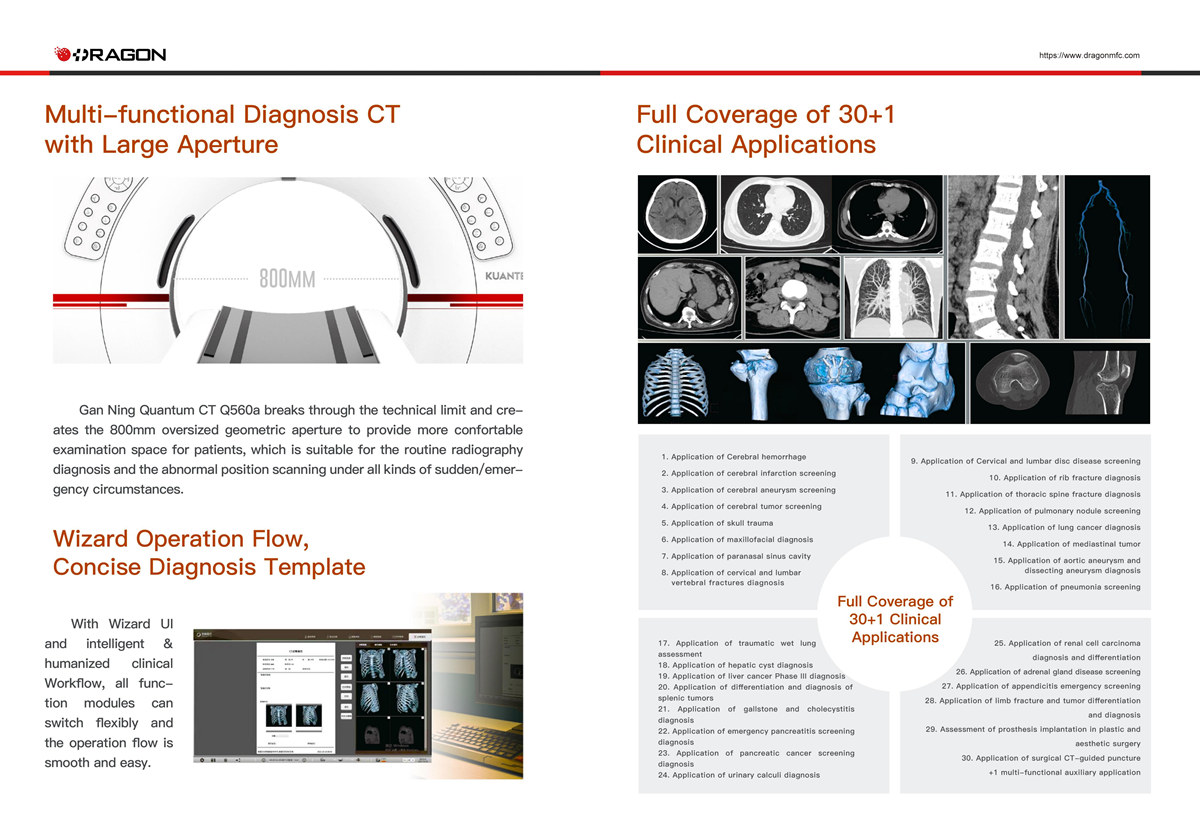

Multi-functional Diagnosis CT with Large Aperture
Gan Ning Quantum CT Q560a breaks through the technical limit and creates the 800mm oversized geometric aperture to provide more comfortable examination space for patients, which is suitable for the routine radiography diagnosis and the abnormal position scanning under all kinds of sudden/emergency circumstances.
Wizard Operation Flow,Concise Diagnosis Template
With Wizard Ul and intelligent & humanized clinical Workflow, all function modules can switch flexibly, and the operation flow is smooth and easy.
Full Coverage of 30+1 Clinical Applications
1. Application of Cerebral hemorrhage
2. Application of cerebral infarction screening
3. Application of cerebral aneurysm screening
4. Application of cerebral tumor screening
5. Application of skull trauma
6. Application of maxillofacial diagnosis
7. Application of paranasal sinus cavity
8. Application of cervical and lumbar vertebral fractures diagnosis
9. Application of Cervical and lumbar disc disease screening
10. Application of rib fracture diagnosis
11. Application of thoracic spine fracture diagnosis
12. Application of pulmonary nodule screening
13. Application of lung cancer diagnosis
14. Application of mediastinal tumor
15. Application of aortic aneurysm and dissecting aneurysm diagnosis
16. Application of pneumonia screening
17. Application of traumatic wet lung Ap assessment
18. Application of hepatic cyst diagnosis
19. Application of liver cancer Phase Ill diagnosis
20. Application of differentiation and diagnosis of splenic tumors
21. Application of gallstone and cholecystitis diagnosis
22. Application of emergency pancreatitis screening diagnosis
23. Application of pancreatic cancer screening diagnosis
24. Application of urinary calculi diagnosis
25. Application of renal cell carcinoma diagnosis and differentiation
26. Application of adrenal gland disease screening
27. Application of appendicitis emergency screening
28. Application of limb fracture and tumor differentiation and diagnosis
29. Assessment of prosthesis implantation in plastic and
aesthetic surgery
30. Application of surgical CT-guided puncture +1 multi-functional auxiliary application
