| Product type | MPD56B | MPD50B | MPD50B-I | |

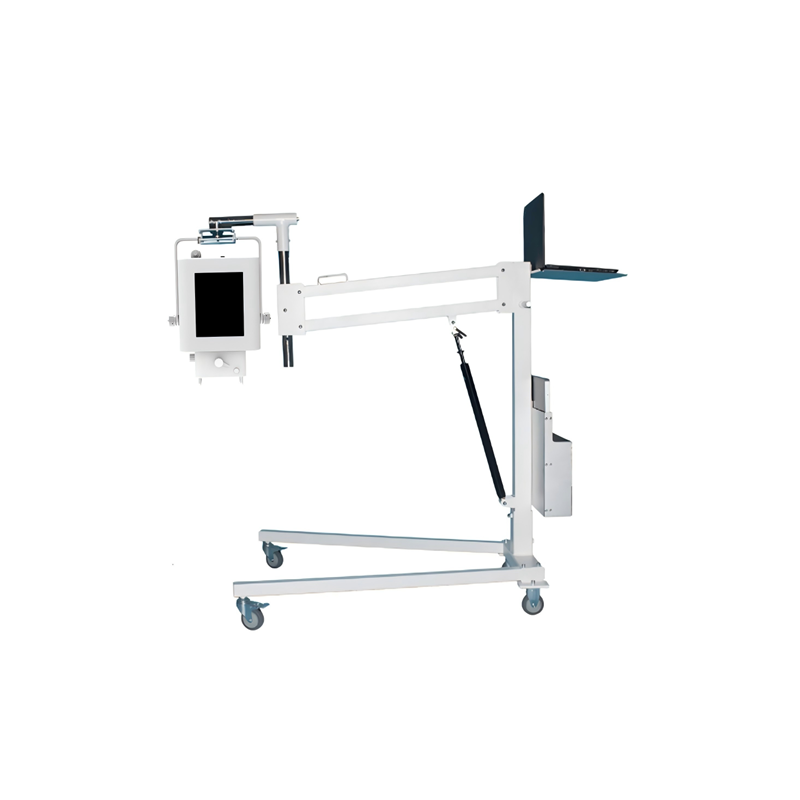

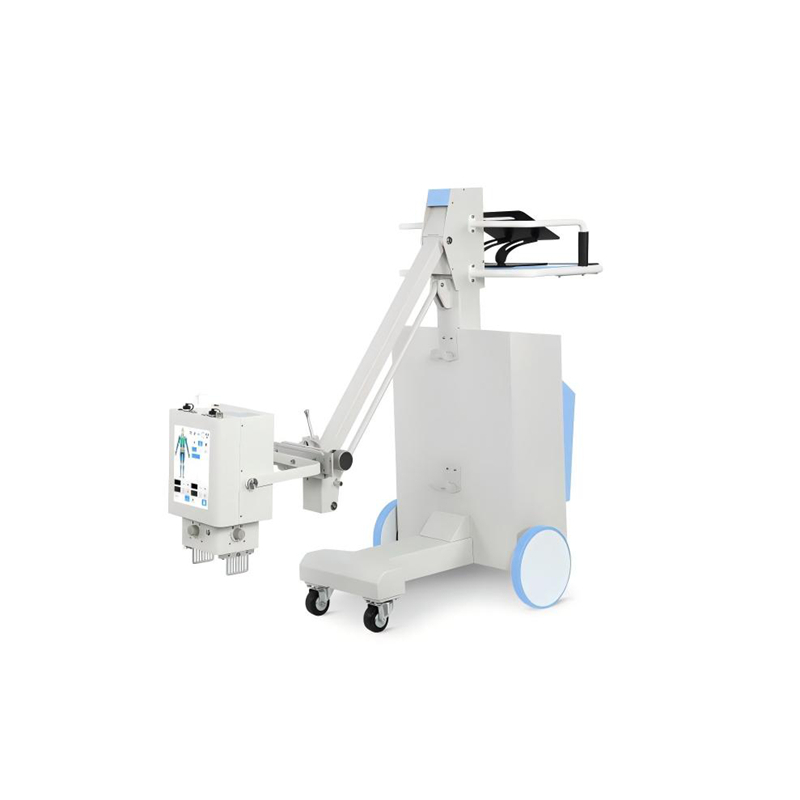

| Portable X- Ray Host |  Max. output | 5.6kW | 5kW | 5kW |
| power range | 40-125kV | 40-125kV | 40-125kV | |
| mA range | 5-100mA | 10-100mA | 10-100mA | |
| mAs range | 0.1-320mAs | 0.1-100mAs | 0.1-100mAs | |
| Interface | RS232 | RS232 | RS232 | |
| Power supply | 100-120/210-230VAC | 100-120/210-230VAC | 100-120VAC/210-230VAC | |
| Battery | N/A | N/A | N/A | |
| Collimator | Deviations between ray radiation field and light field is not more than 3% of SID. | Deviations between ray radiation field and light field is not more than 3% of SID. | Deviations between ray radiation field and light field is not more than 3% of SID. | |
| Amorphous Silicon Panel Detector | Scintillator Type | CsI | GoS | GoS |
| Pixel size | 139um | 139um | 139um | |
| Pixel matrix | 3072 x 3072 | 3072 x 3072 | 3072 x 3072 | |
| Effective area | 427mm x 427mm | 427mm x 427mm | 427mm x 427mm | |
| Spatial resolution | 3.6 lp/mm | 3.4 lp/mm | 3.4 lp/mm | |
| Data interface | Gigabit Ethernet | Gigabit Ethernet | Gigabit Ethernet | |
| Power supply | 24VDC | 24VDC | 24VDC | |
| Battery | N/A | N/A | N/A | |
| Workstation | Laptop | CPU Intel i5 /Memory 8GB/Hard disk 512GB/Screen resolution 1920×1080 | CPU Intel i5 /Memory 8GB/Hard disk 512GB/Screen resolution 1920×1080 | CPU Intel i5 /Memory 8GB/Hard disk 512GB/Screen resolution 1920×1080 |
| Image processing system | DICOM3.0, image brightness/contrast, window width/window position, tissue equaliztion,image enhancement and sharpening, image transmission and printing etc. | DICOM3.0, image brightness/contrast, window width/window position, tissue equaliztion,image enhancement and sharpening, image transmission and printing etc. | DICOM3.0, image brightness/contrast, window width/window position, tissue equaliztion,image enhancement and sharpening, image transmission and printing etc. | |
| Portable rack | Height range | The minimum distance between the X-ray focus center and the ground is not more than 500mm, and the maximum distance is not less than 1750mm | The minimum distance between the X-ray focus center and the ground is not more than 500mm, and the maximum distance is not less than 1750mm | the X-ray focus center and the ground isnot more than 670mm, and the maximumdistance is not less than 1690mm |
| Rotation range | The rotation angle of the X-Ray host around vertical axis is ± 90 º | The rotation angle of the X-Ray host around vertical axis is ± 90 º | The rotation angle of the X-Ray host around vertical axis is 120 º and horizontal axis is 360 º | |
| Package Size | Case | 1630mm×770mm×1488mm | 1630mm×770mm×1488mm | 1160mm*470mm*200mm 620mm*620mm*270mm 660mm*510mm*420mm |
| Weight | G.W. | 200kg | 200kg | 100kg |
