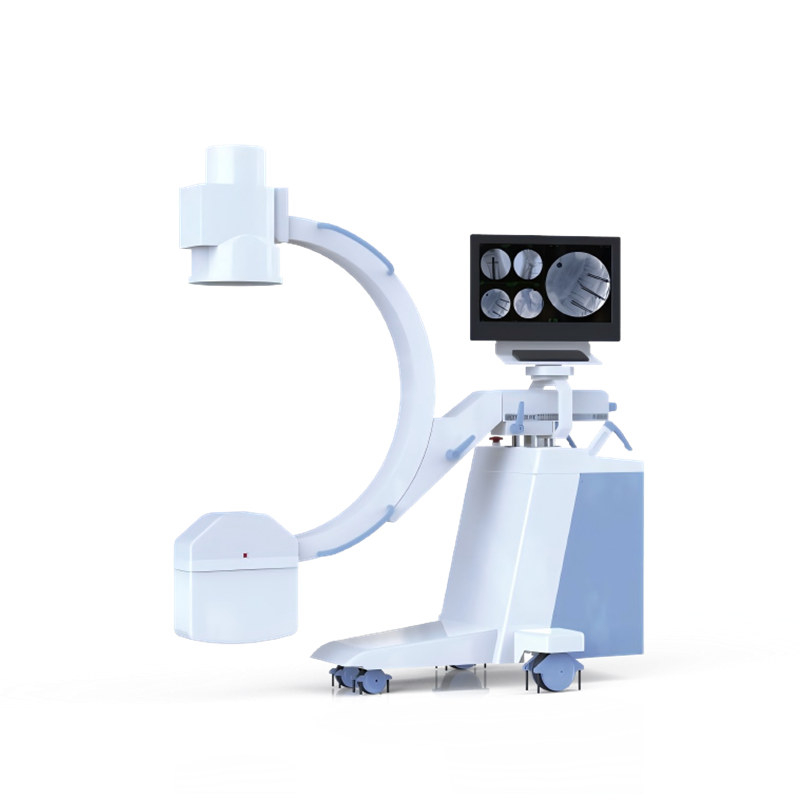

PLX116A1/B1
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |

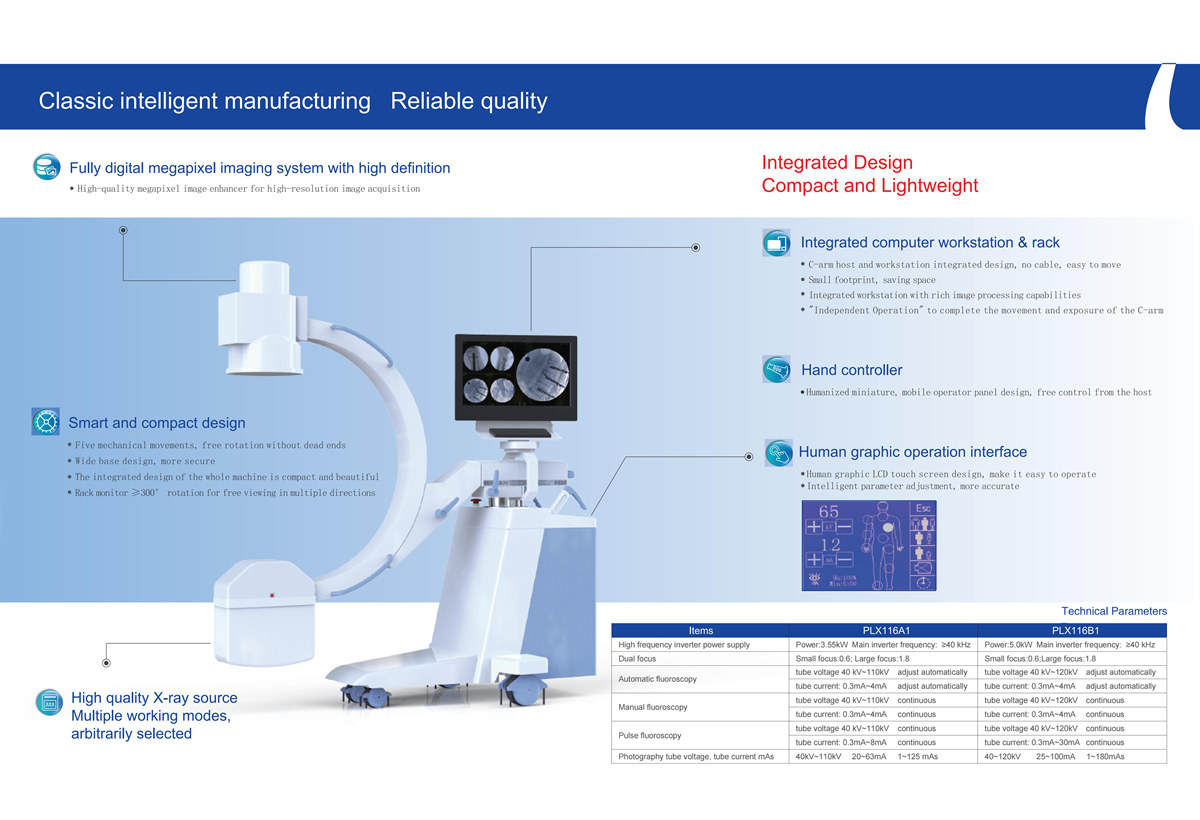

Fully digital megapixel imaging system with high definition
High-quality megapixel image enhancer for high-resolution image acquisition
Smart and compact design
Five mechanical movements, free rotation without dead ends
Wide base design, more secure
The integrated design of the whole machine is compact and beautiful
Rack monitor ≥300°rotation for free viewing in multiple directions
Integrated computer workstation & rack
C-arm host and workstation integrated design, no cable, easy to move
Small footprint, saving space
Integrated workstation with rich image processing capabilities
"Independent Operation" to complete the movement and exposure of the C-arm
Hand controller
Humanized miniature, mobile operator panel design, free control from the host
Human graphic operation interface
Human graphic LCD touch screen design, make it easy to operate
Intelligent parameter adjustment, more accurate
High quality X-ray source Multiple working modes, arbitrarily selected
| ltems | PLX116A1 | PLX116B1 |
| High frequency inverter power supply | Power: 3.55kW Main inverter frequency: ≥40 kHz | Power: 5.0kW Main inverter frequency: ≥40 kHz |
| Dual focus | Small focus: 0.6; Large focus: 1.8 | Small focus: 0.6; Large focus: 1.8 |
| Automatic fluoroscopy | tube voltage 40 kV~110kV adjust automatically | tube voltage 40 kV~120kVadjust automatically |
| tube current: 0.3mA~4mA adjust automatically | tube current: 0.3mA~4mA adjust automatically | |
| Manual fluoroscopy | tube voltage 40 kV~110kV continuous | tube voltage 40kV~120kV continuous |
| tube current: 0.3mA~4mA continuous | tube current: 0.3mA~4mA continuous | |
| Pulse fluoroscopy | tube voltage 40 kV~110kV continuous | tube voltage 40 kV~120kV continuous |
| tube current: 0.3mA~8mA continuous | tube current: 0.3mA~30mA continuous | |
| Photography tube voltage, tube current mAs | 40kV~110kV20~63mA1~125 mAs | 40~120kV 25~100mA 1~180mAs |
