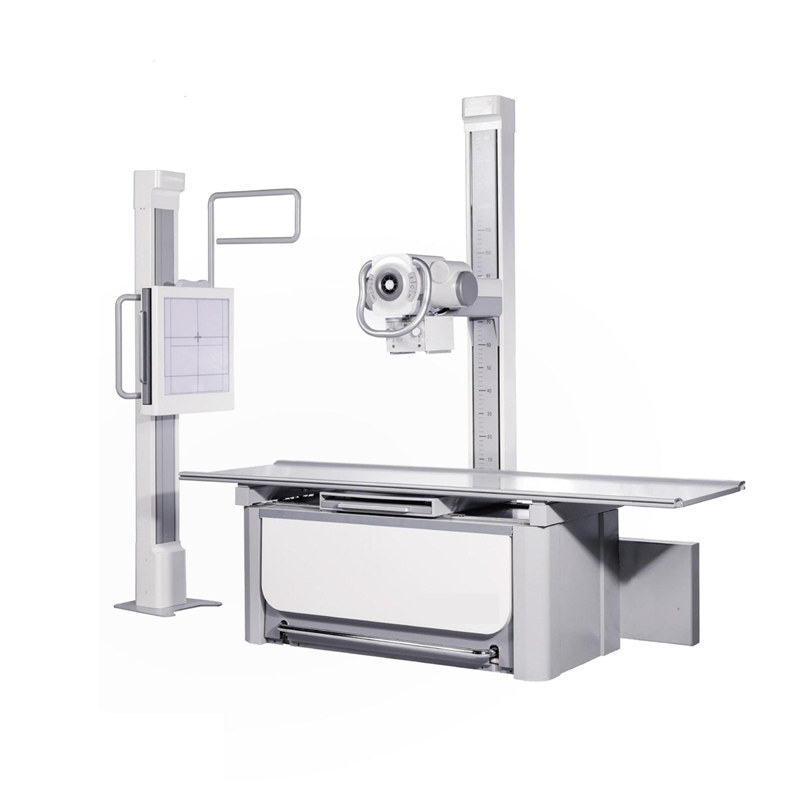

RayNova DRsc4
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |

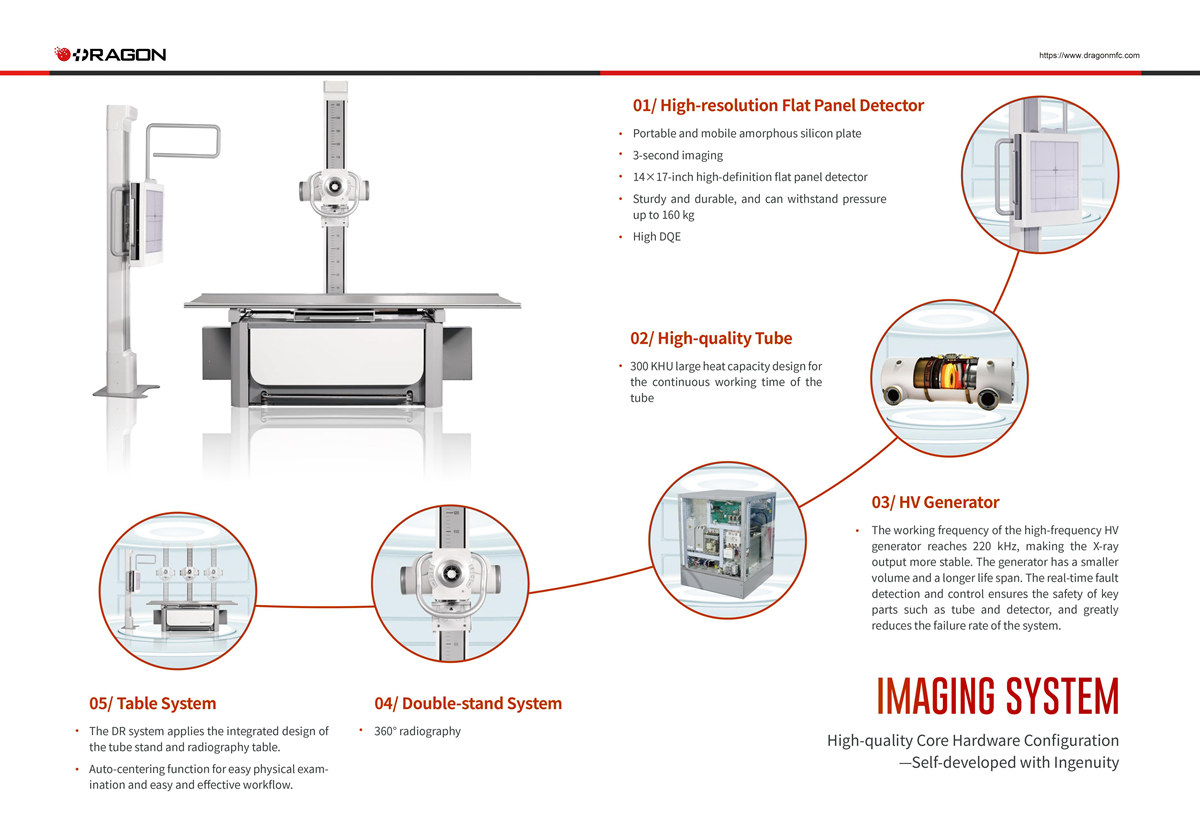

01/ High-resolution Flat Panel Detector
Portable and mobile amorphous silicon plate3-second imaging 14x17-inch high-definition flat panel detector.
Sturdy and durable and can withstand pressure up to 160 kg.
High DQE
02/High-quality Tube
300 KHU large heat capacity design for the continuous working time of the tube
03/ HV Generator
The working frequency of the high-frequency HV generator reaches 220 kHz, making the X-ray output more stable. The generator has a smaller volume and a longer life span. The real-time fault detection and control ensures the safety of key parts such as tube and detector and greatly reduces the failure rate of the system.
04/ Double-stand System
360°radiography
05/ Table System
· The DR system applies the integrated design of the tube stand and radiography table.
· Auto-centering function for easy physical exam-ination and easy and effective workflow.

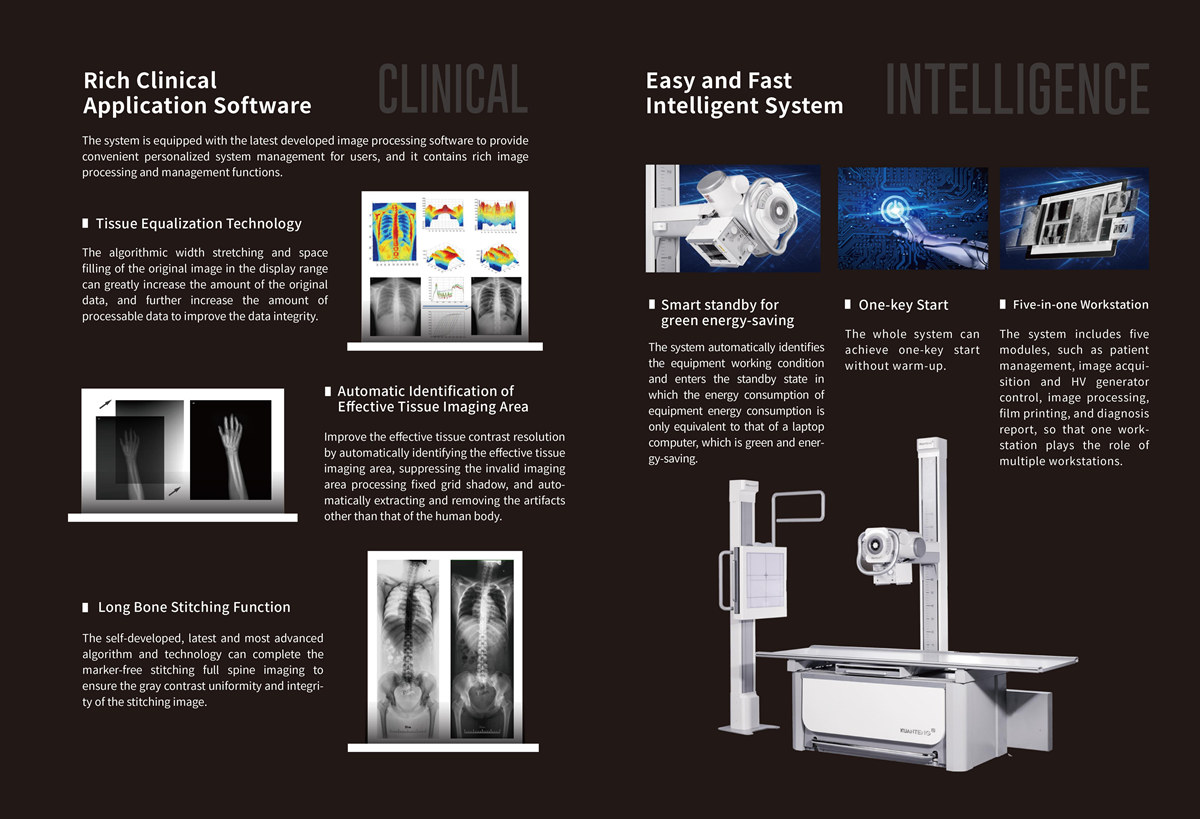

Rich Clinical Application Software
The system is equipped with the latest developed image processing software to provide convenient personalized system management for users, and it contains rich image processing and management functions.
Tissue Equalization Technology
The algorithmic width stretching and space filling of the original image in the display range can greatly increase the amount of the original data and further increase the amount of processable data to improve the data integrity.
Automatic identification of Effective Tissue Imaging Area
Improve the effective tissue contrast resolution by automatically identifying the effective tissue imaging area, suppressing the invalid imaging area processing fixed grid shadow, and auto- mantically extracting and removing the artifacts other than that of the human body.
Long Bone Stitching Function
The self-developed, latest and most advanced algorithm and technology can complete the marker-free stitching full spine imaging to ensure the gray contrast uniformity and integrity of the stitching image.
Easy and Fast Intelligent System
Smart standby for green energy-saving
The system automatically identifies the equipment working condition and enters the standby state in which the energy consumption of equipment energy consumption is only equivalent to that of a laptop computer, which is green and energy-saving.
One-key Start
The whole system can achieve one-key start without warm-up.
Five-in-one Workstation
The system includes five modules, such as patient management, image acqui- sition and HV generator control, image processing, film printing, and diagnosis report, so that one work- station plays the role of multiple workstations.
