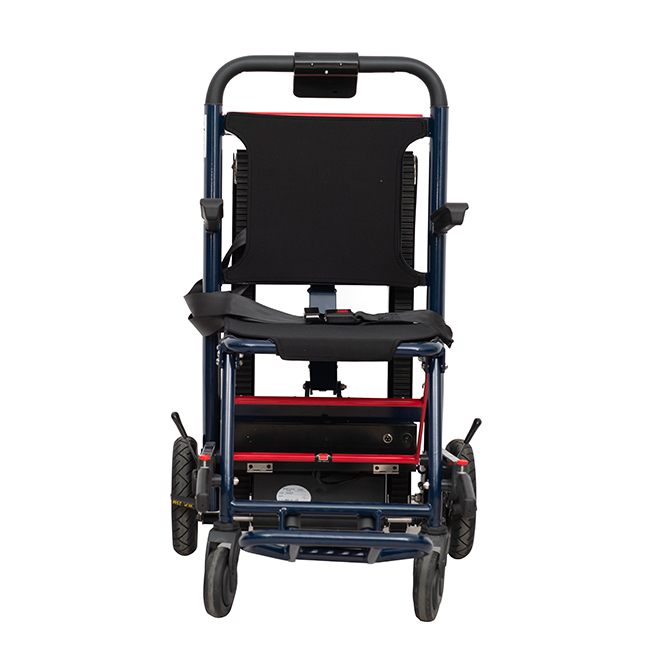

DW-SW04
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
Product Features
1. Made of high strength aluminum alloy.
2. With removable and washable seat cushion and backrest.
3. The footrest can be turned over when not in use.
4. Three adjustable track angles behind the backrest, suitable for different floors.
5. three positions of the lift rod can help operators of any size to move the lift rod on the stairs.
6. It only needs one person to operate. The track part can easily go up and down the stairs by touching three steps at the same time.
7. This chair is powerfully powered by two motors, and the controller is easy and convenient to operate.
8. Intelligent controller.
9. Precise battery indicator light can indicate the battery usage and ensure that the power will not be cut off when it is in use.
Product parameters
| Color Option | Black |
| Material | Aluminum |
| Unfold Size（L*W*H) | 138cm*61cm*157cm(±3.5cm) |
| Fold Size（L*W*H) | 102cm*61cm*32cm(±3.5cm) |
| Packing Size（L*W*H) | 110cm*65cm*31cm(±2cm) （Wooden Box） |
| N.W. | 33±2 kg |
| G.W. | 43±2 kg |
| Front / Back Wheel Size | 5"/10" |
| Track Angle | ＜35° |
| Loading Capacity | 169kg |
| Climbing Speed | Slow:32 Steps/mins±5% Medium: 40 steps/mins±5% Fast:55 Steps/mins±5% |
| Motor Spec | 24V 120W |
| Spec of Liner Actuator | Voltage:24V Torsion:1000N Speed:12mm/S Distance:100MM |
| Battery Spec | 24V/13.6Ah(Max) |
| Charging Voltage | AC100-240v 50/60Hz |
| Using Time / Charger | 500 steps |
