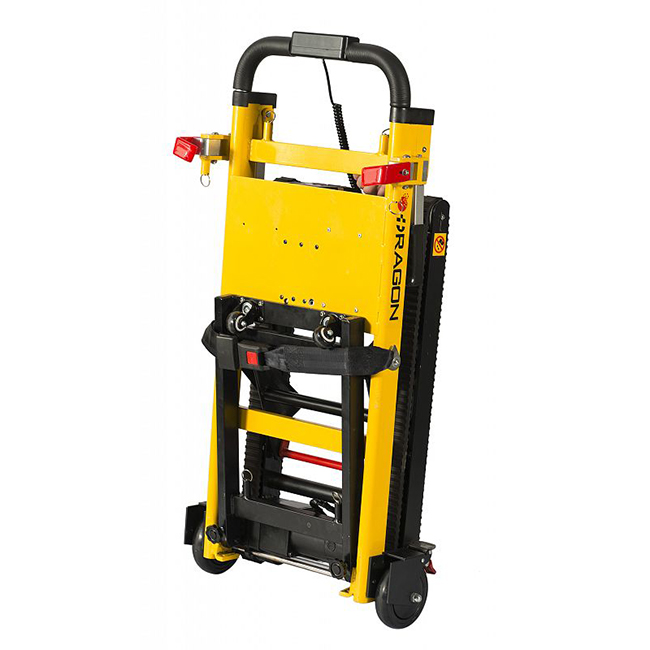

DW-11C
DRAGON
| Quantity: | |
|---|---|
| PDF Export | |
Product Features
1、For hospitals. First aid center. Fire fighting. Emergency rescue. Family up and down the stairs to pull the goods used.
2、The stair stretcher is mainly used in high-rise buildings to transfer patients up and down the stairs, only one person can be used.
3、Independent crawler structure, the stretcher down the stairs for convenience.
4、The stretcher is made of aluminum alloy.
5、Wheel size: Φ125/41mm.
Product parameters
| Color Option | Yellow |
| Material | Aluminum |
| Unfold Size（L*W*H) | 88cm*57cm*165cm(±3.5cm) |
| Fold Size（L*W*H) | 105cm*50cm*23cm(±3.5cm) |
| Packing Size（L*W*H) | 109cm*58cm*31cm(±2cm) （Wooden Box） |
| N.W. | 33±2 kg |
| G.W. | 42±2kg |
| Front / Back Wheel Size | 2.5"/5" |
| Track Angle | ＜35° |
| Loading Capacity | 169kg |
| Climbing Speed | 40 steps/mins±5% |
| Motor Spec | 24V 120W |
| Battery Spec | 24V/13.6Ah(Max) |
| Charging Voltage | AC100-240v 50/60Hz |
| Using Time / Charger | 500 steps |
